Accessories and components
End terminations, connectors, and much more for trace heating
Our extensive range of accessories and components for electrical trace heating, such as end terminations, connectors or connection sets, enables the smooth, custom implementation of almost any trace heating project. Our experts would be happy to advise you.
Product | for heating tapes | Clamps | Surroundings | Download Technology | Download Approval |

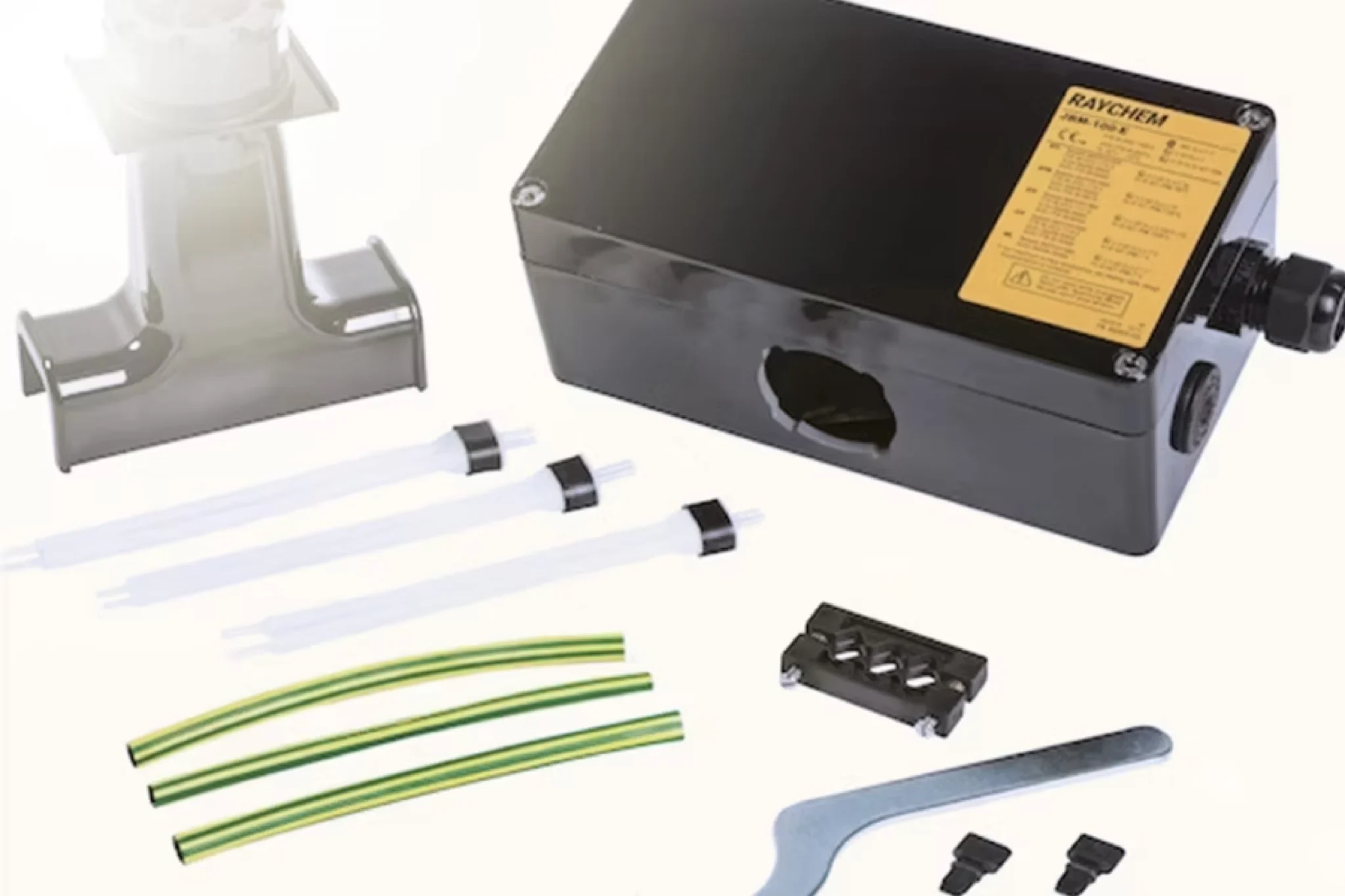

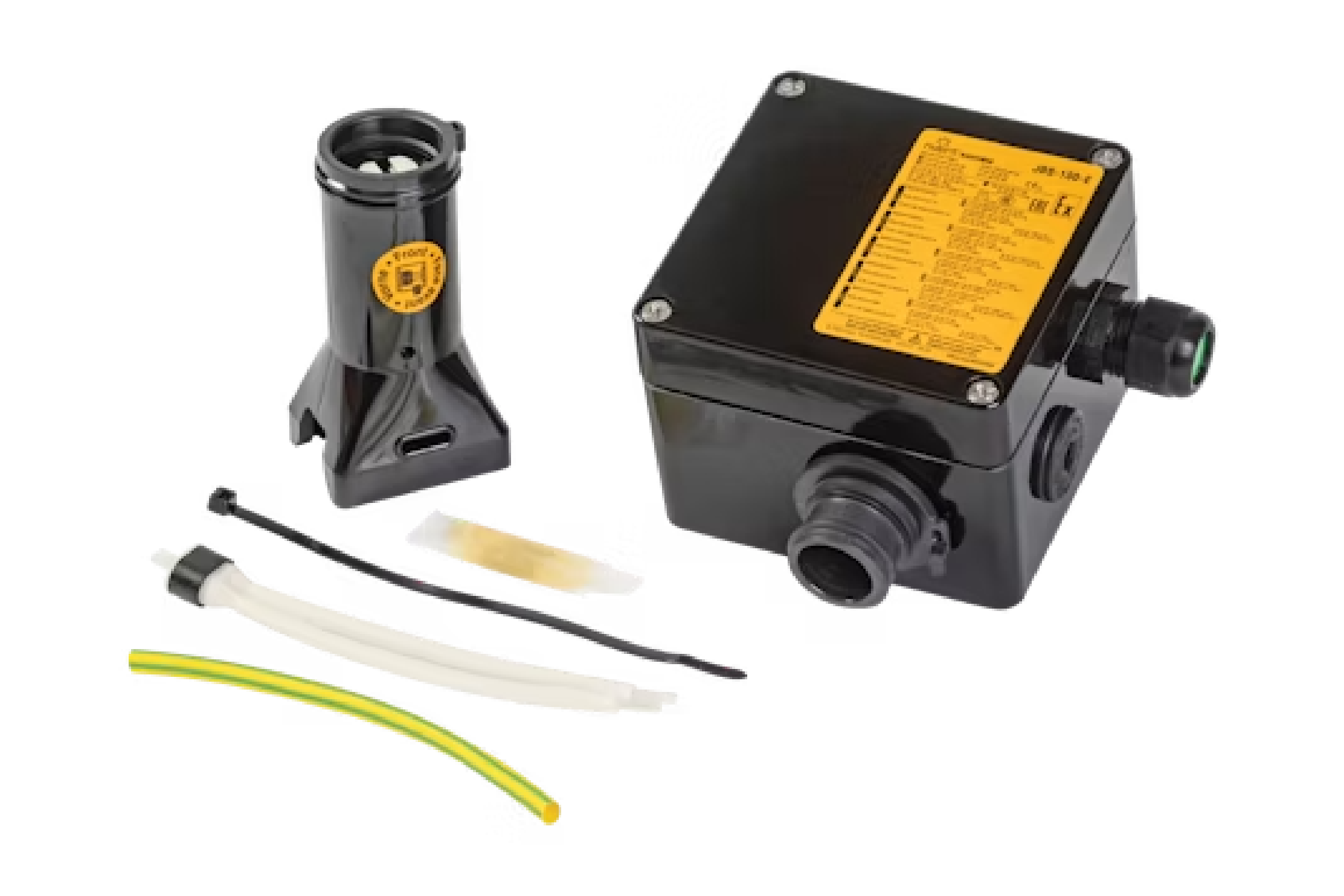

JBS-100-E   | BTV-CR BTV-CT QTVR XTV KTV VPL incl. Connection Kit | 10 mm² | IP 66 -50 ... +40 (+56)°C | Data sheetInstallation Instructions | EU-Declaration of Conformity systemPTB systemIECEx Certificate (until 2020)IECEx Certificate (from 2020) |

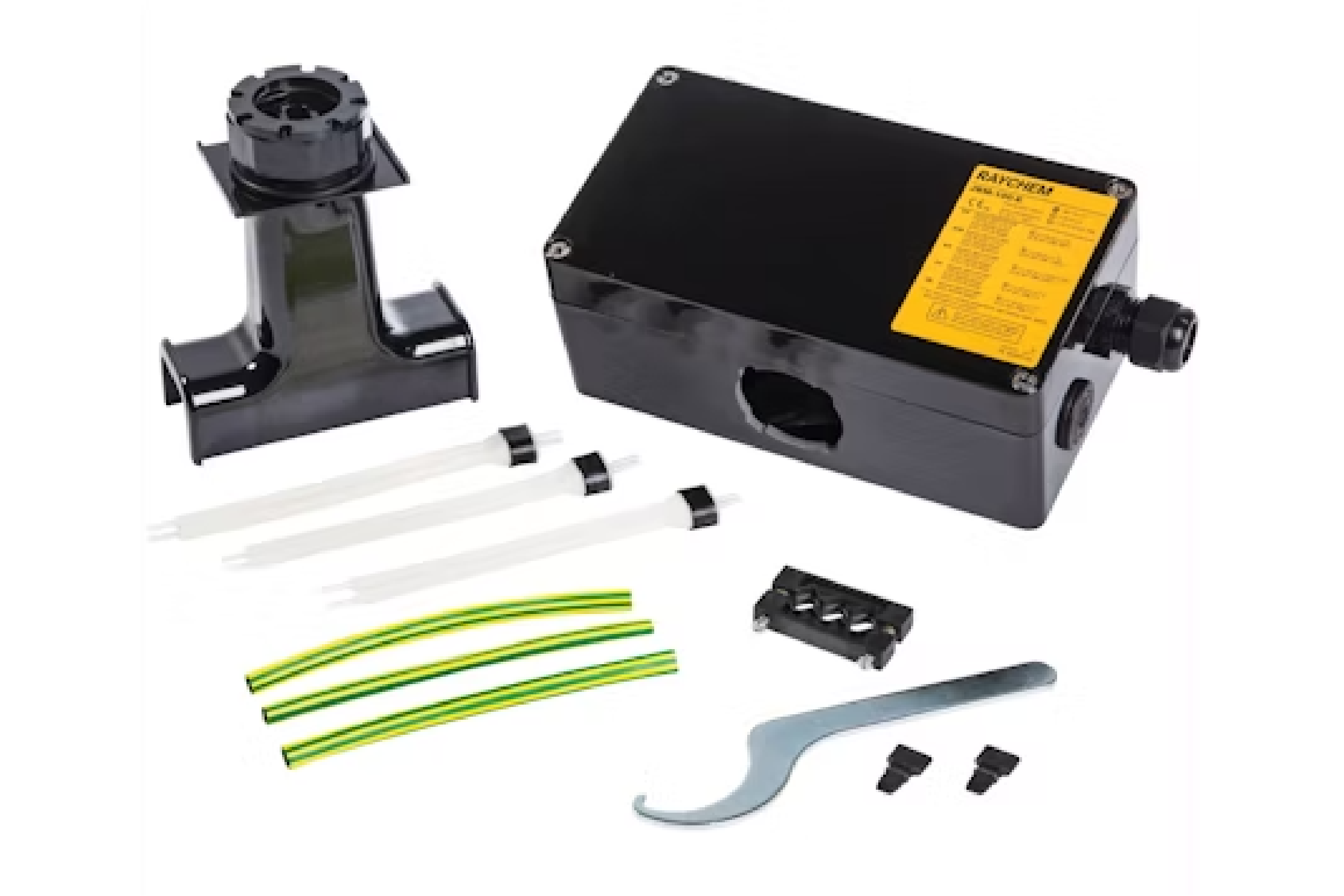

JBM-100-E  | BTV-CR BTV-CT QTVR XTV KTV VPL incl. Anschluss-Garnituren | 10 mm² | IP 66 -50 ... +40 (+56)°C | Installation InstructionsData sheet | EU-Declaration of ConformityPTB systemIECEx Certificate (until 2020)IECEx Certificate (from 2020) |

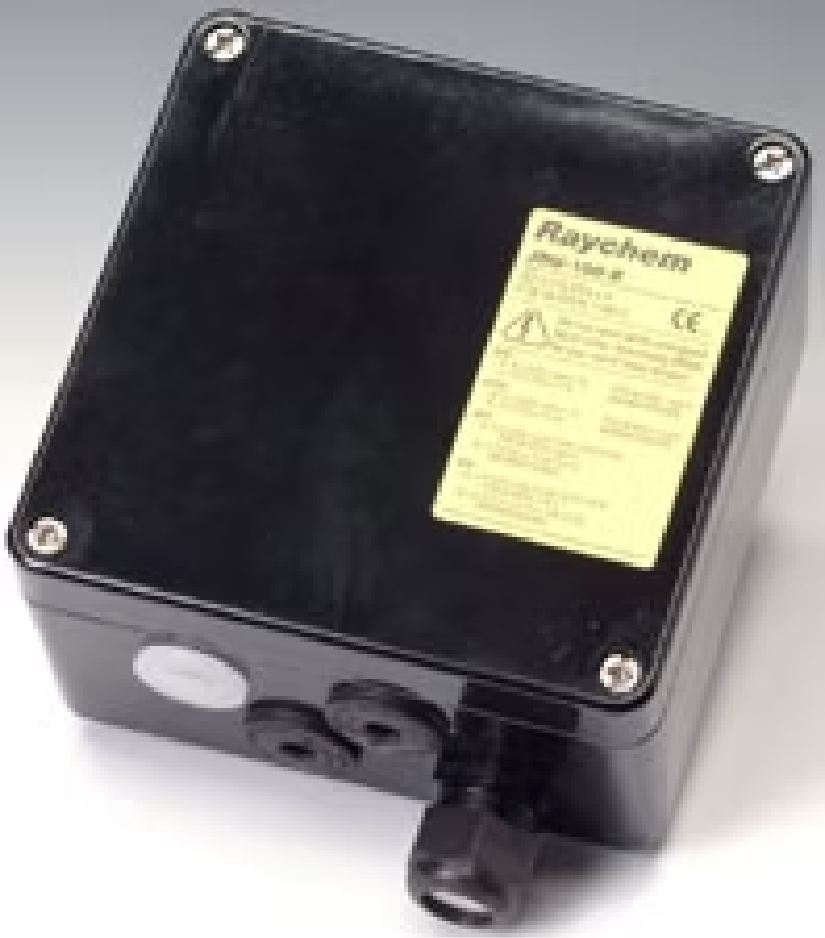

JBU-100  | BTV-CR BTV-CT QTVR XTV KTV VPL for Connection kits C25-100 C25-21 CCON25-100 | 10 mm² | IP 66 -50 ... +40 (+56)°C | Data sheetInstallation Instructions | |

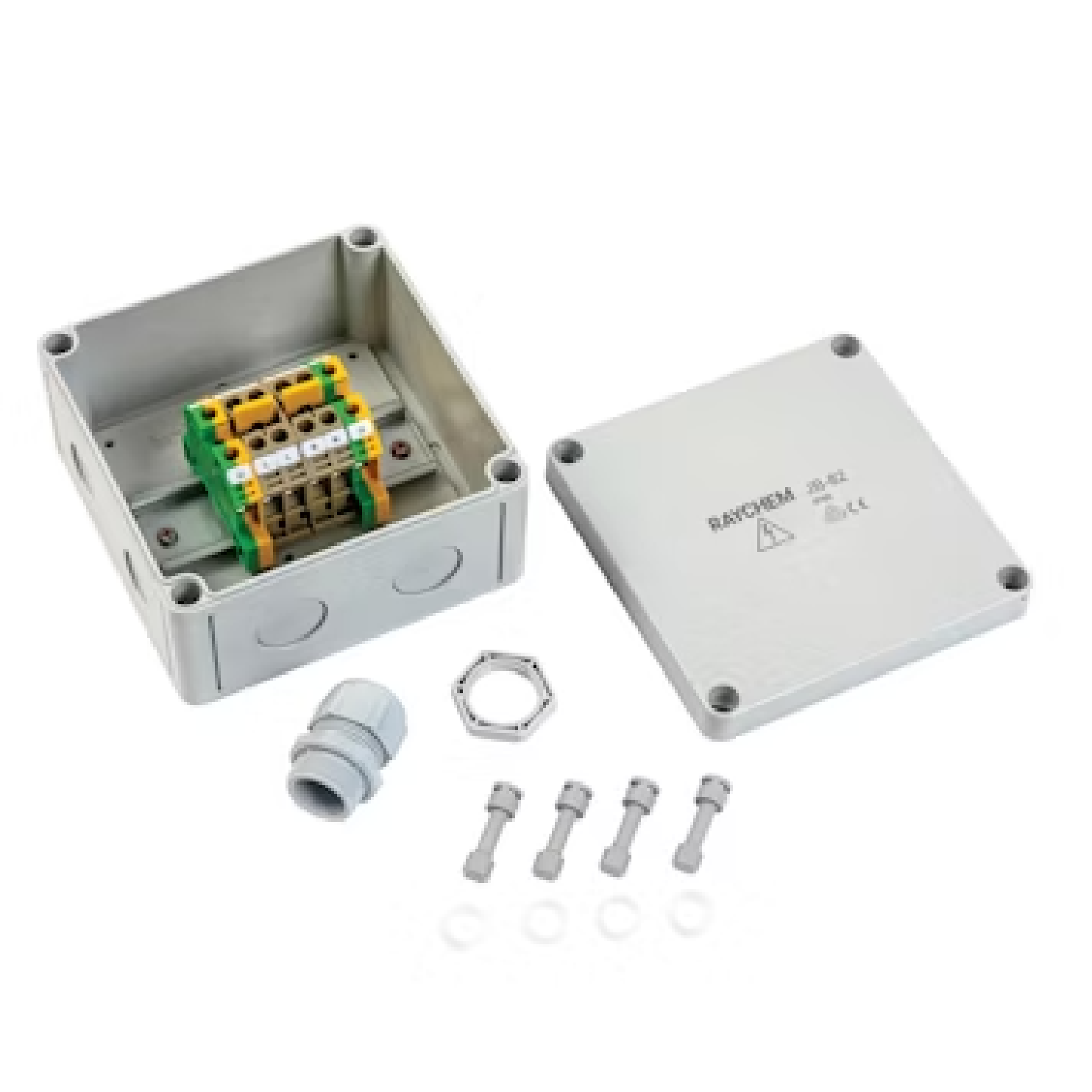

JB-82  | all for Connection kits M20 or M25 | 10 mm² | IP 66 -35 ... +115 °C | Data sheet | |

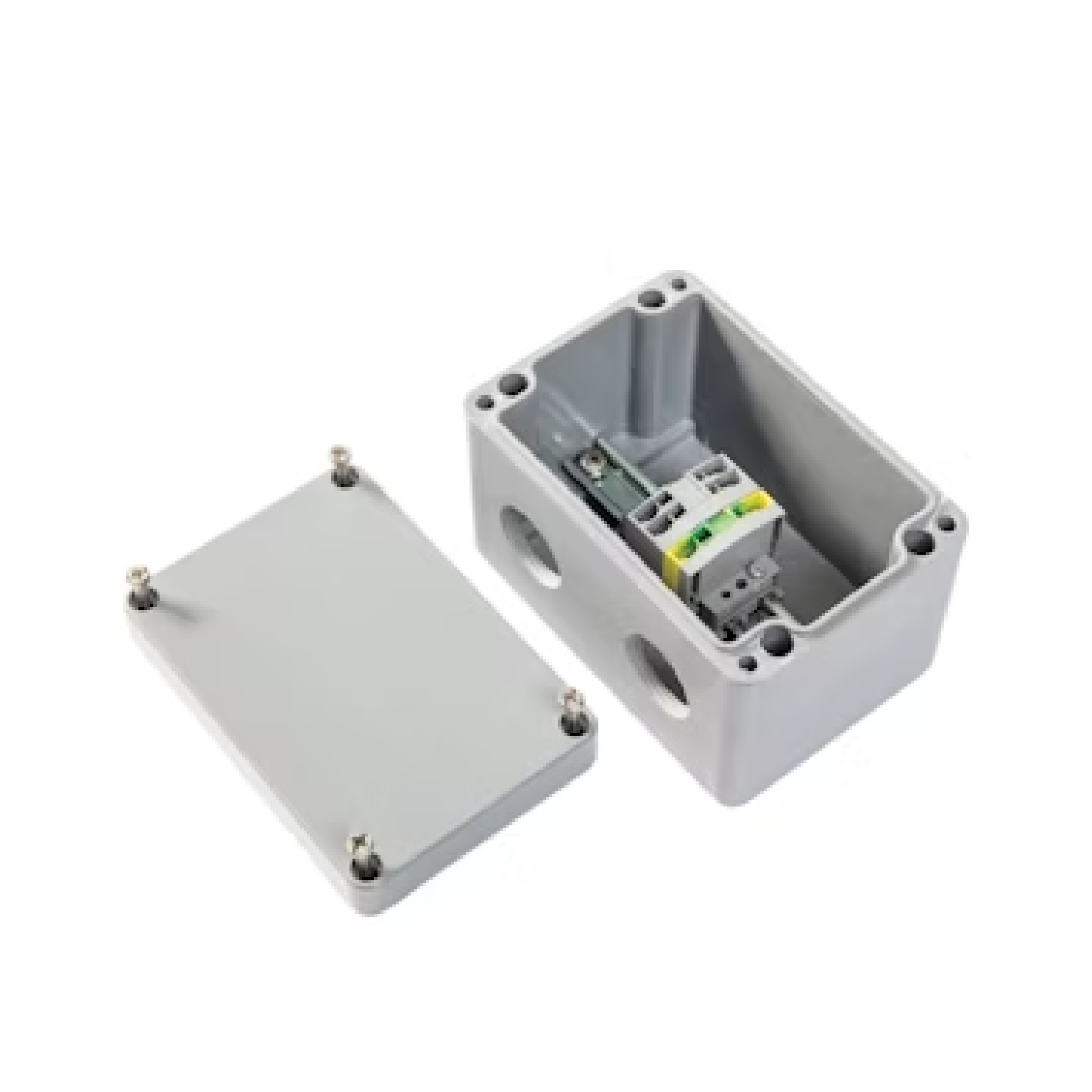

JB-NH2  | all for all Connection kits M25 | 2,5 mm² | IP 66 -35 ... +115 °C | Data sheet | |

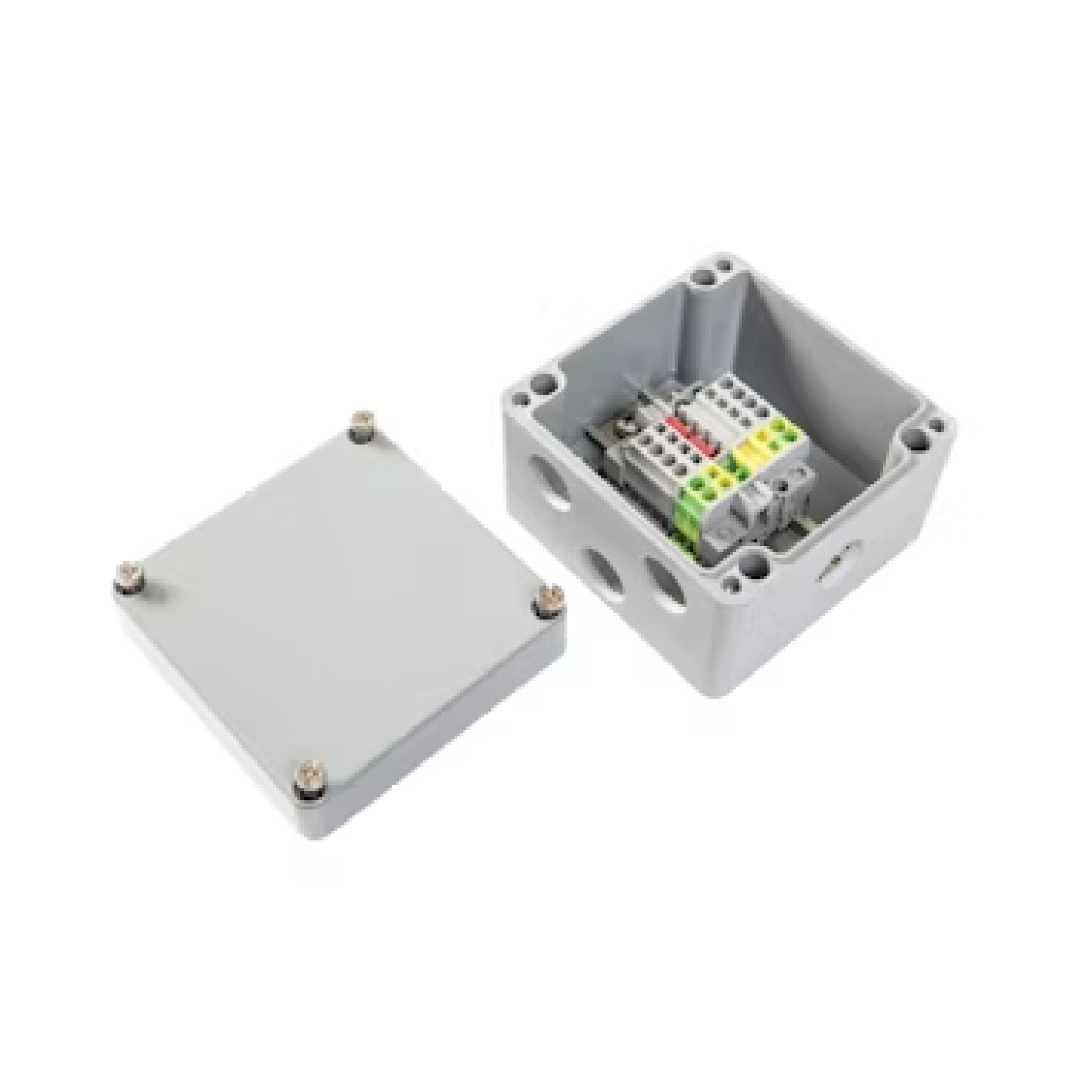

JB-NH4  | all for all Connection kits M25 | 4 mm² | IP 66 -40 ... +90 °C | ||

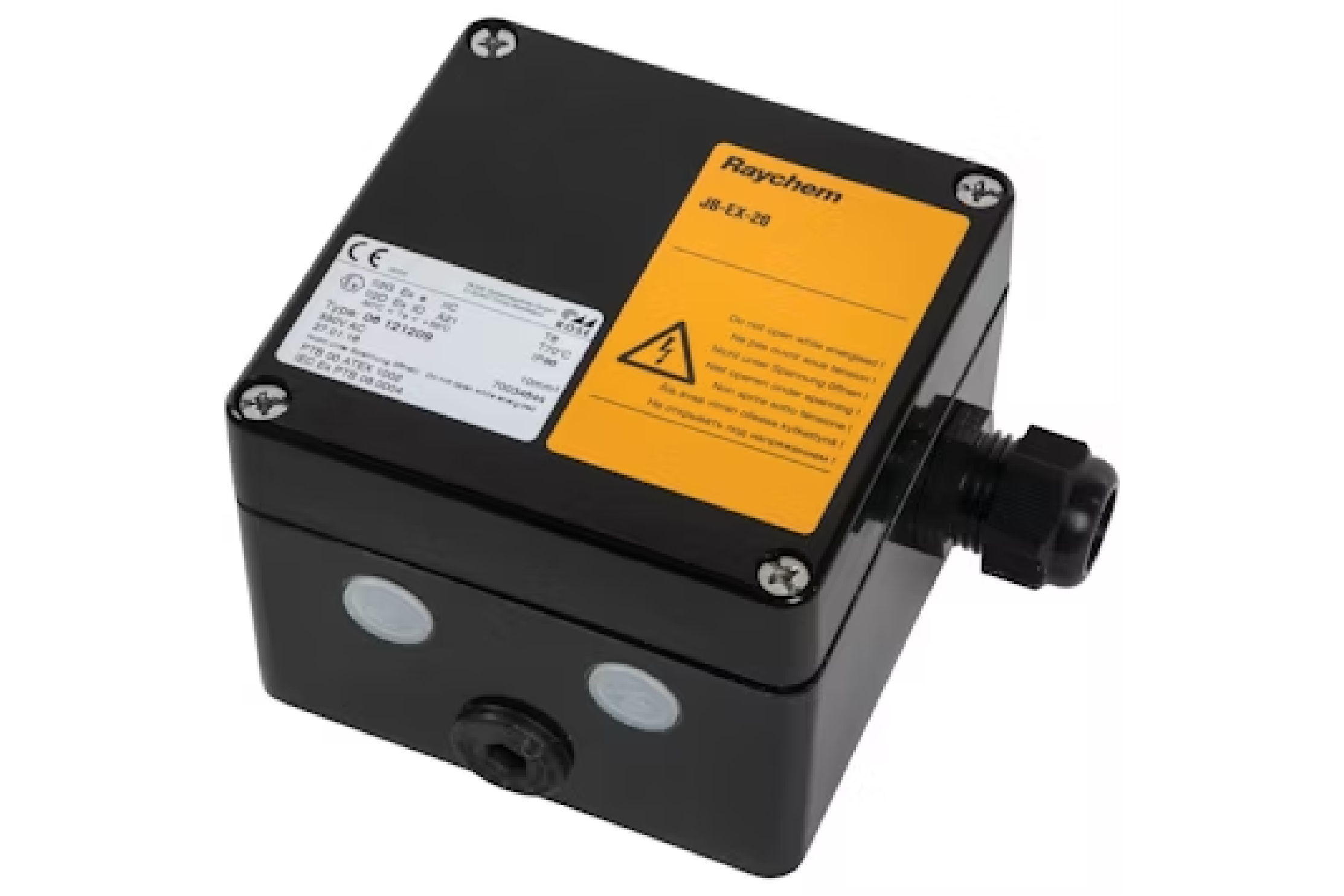

JB-EX-20  | FMT FHT PI MI (M20) for connection kits M20 (EX) Main cable M25 (EX) | 10 mm² | IP 66 -55 ... +55 °C | Data sheetInstallation Instructions | |
JB-EX-21 | FMT FHT PI MI (M20) for Connection kits M20 (EX) Zuleitung M25 (EX) | 10 mm² | IP 66 -55 ... +55 °C | Data sheetInstallation Instructions | |

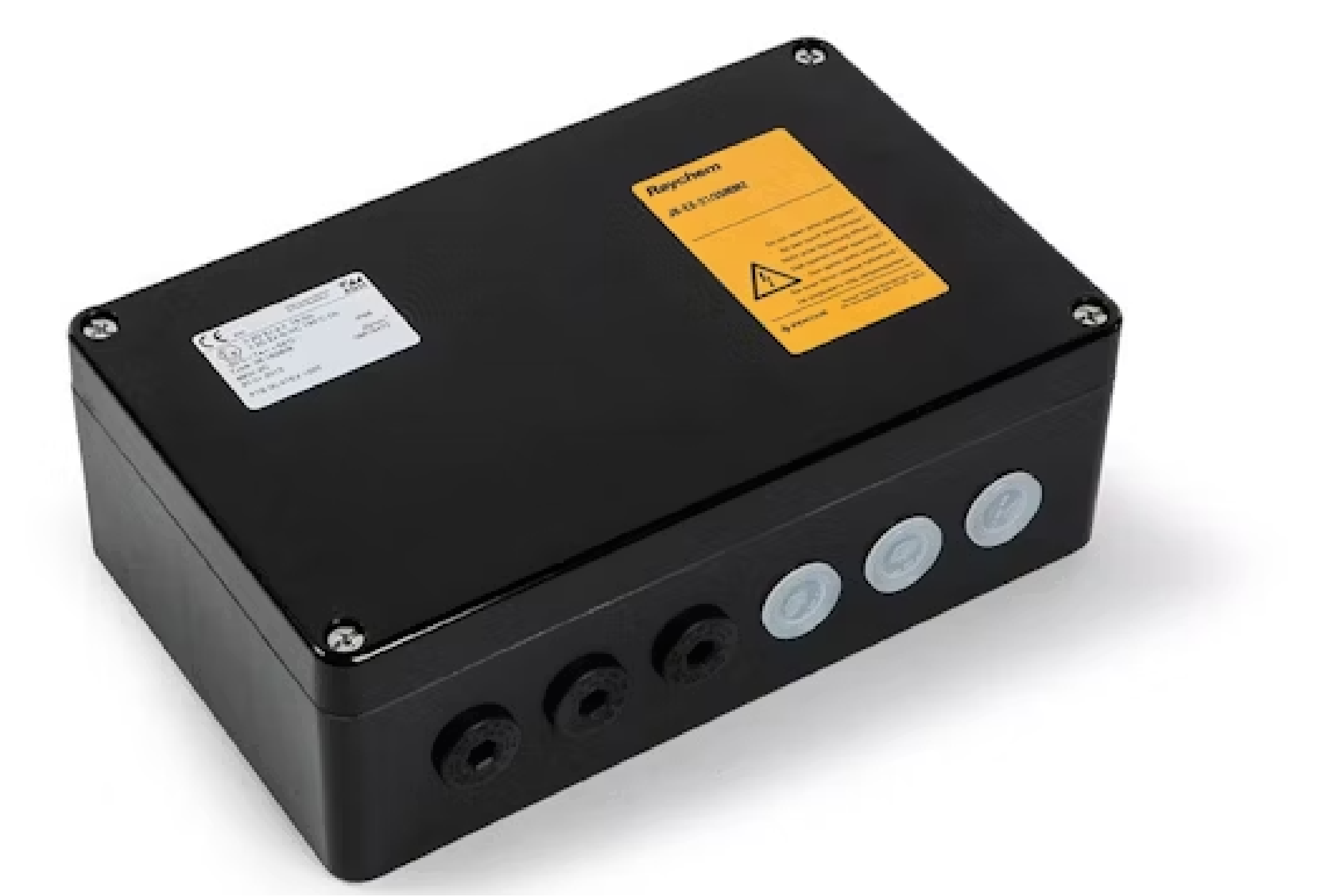

JB-EX-21/35MM2  | PI MI (M20) for Connection kits M20 (EX) Main cable M40 (EX) | 35 mm² | IP 66 -55 ... +55 °C | Data sheet | |
JB-EX-25/35MM2  | MI (M25) for Installation Instructions M25 (EX) Main cable M40 (EX) | 35 mm² | IP 66 -55 ... +55 °C | Data sheet | |
JB-EX-32/35MM2 | MI (M32) for connection kits M32 (EX) Main cable M40 (EX) | 35 mm² | IP 66 -55 ... +55 °C | Data sheet | |

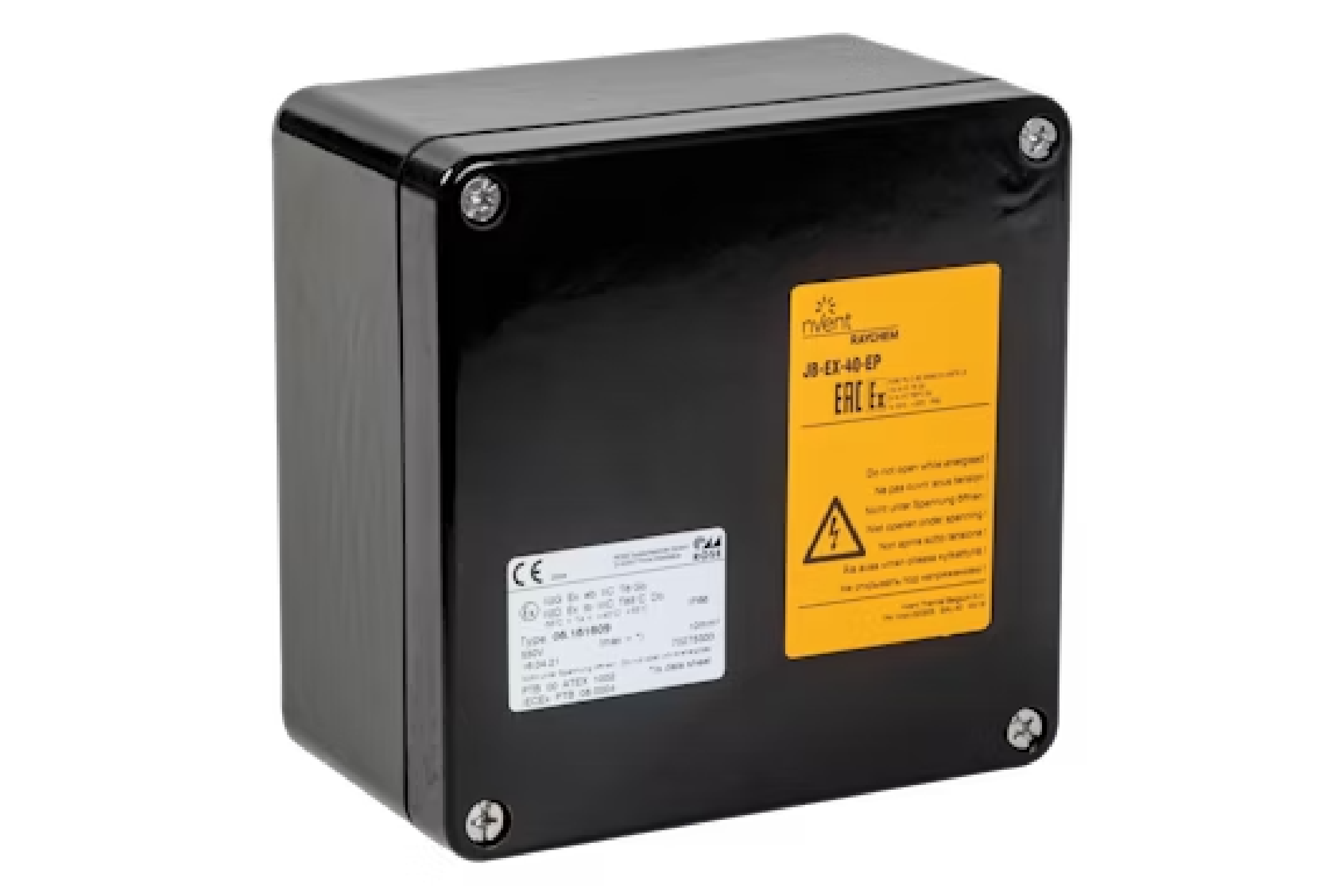

JB-EX-40 EP  | MI (M25) for Connection kits M25 (EX) Main cable M25 (EX) | 10 mm² | IP 66 -55 ... +55 °C | ||

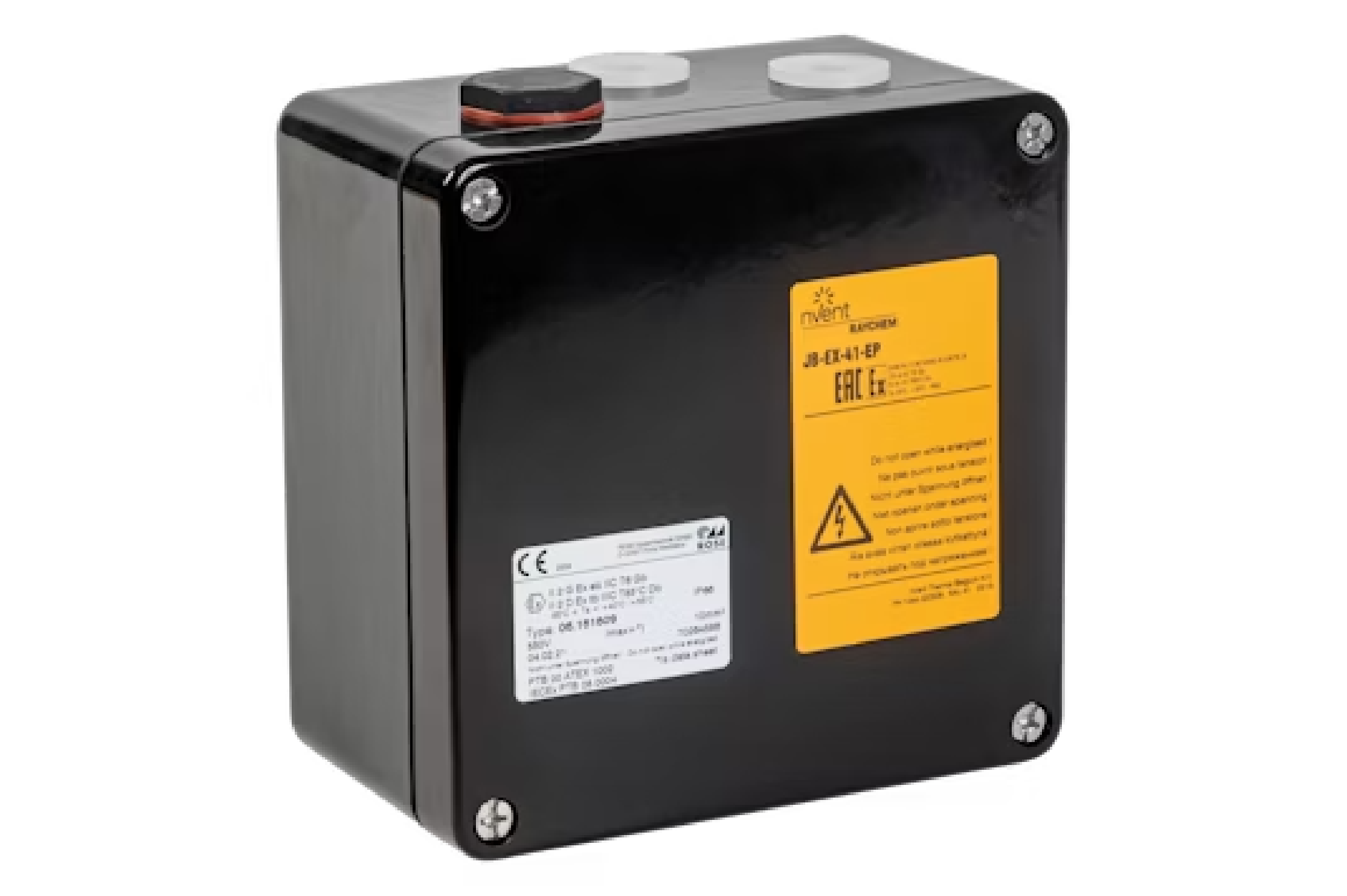

JB-EX-41 EP  | MI (M25) for Connection kits M25 (EX) Main cable M25 (EX) | 10 mm² | IP 66 -55 ... +55 °C | ||

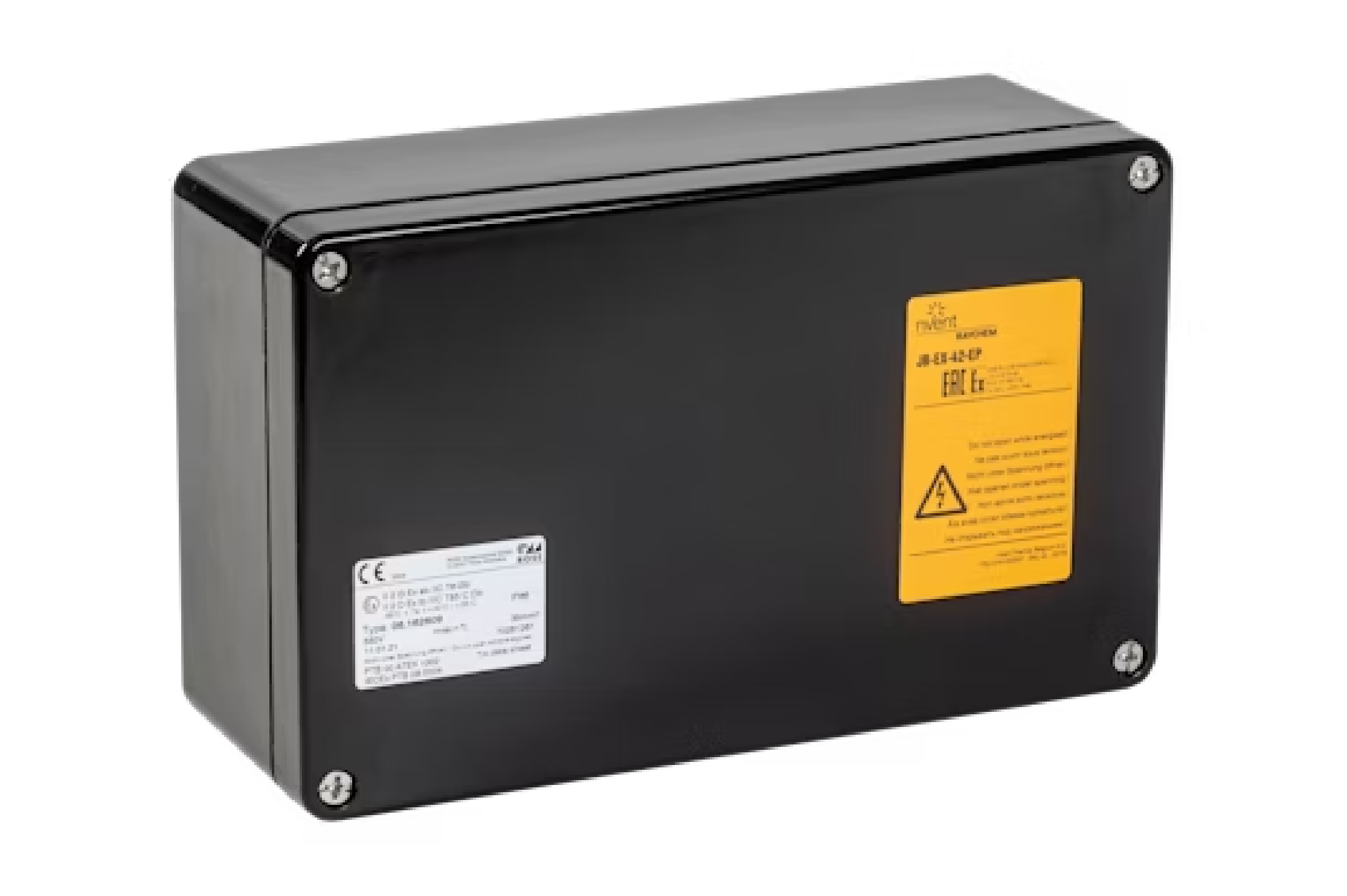

JB-EX-42 EP  | MI (M25) for Connection kits M25 (EX) Main cable M40 (EX) | 35 mm² | IP 66 -55 ... +55 °C |
| Product | for heating tapes | Clamps | Surroundings | Download Technology | Download Approval |

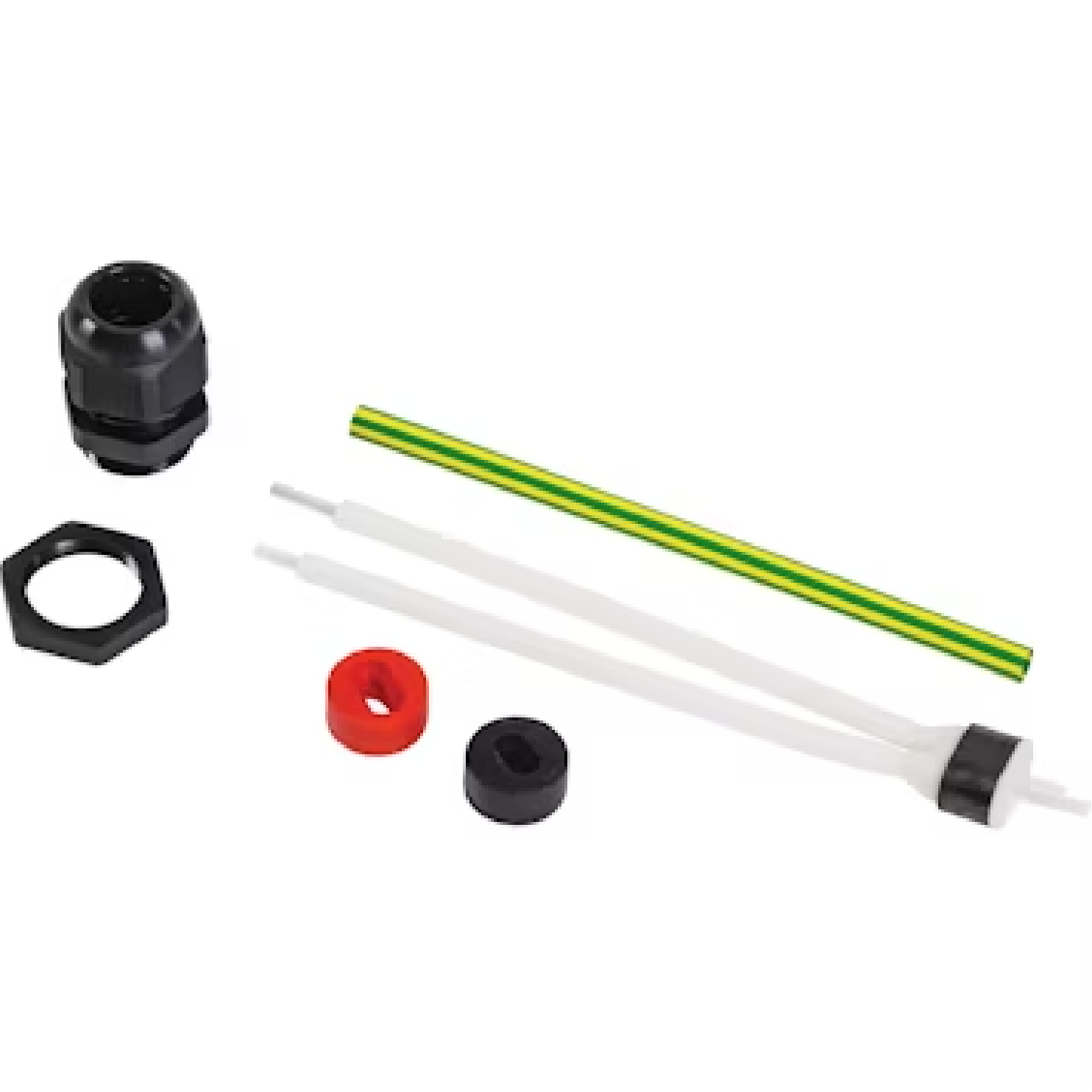

C25-100 (Heat-shrink connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | M25 | IP 66 -50 ... +110 °C | Data sheetInstallation Instructions | |

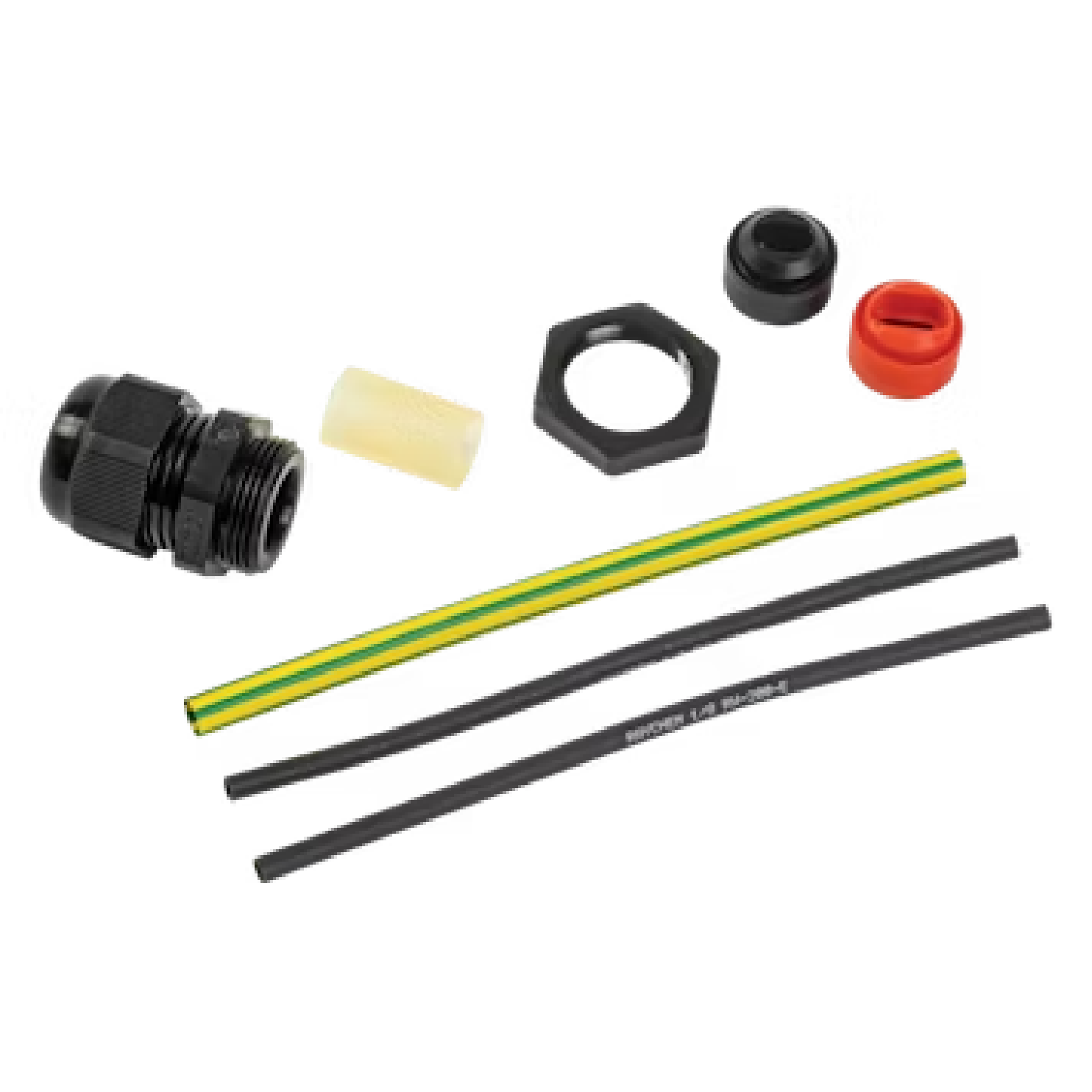

C25-21 (Heat-shrink connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | M25 | IP 66 -50 ... +110 °C | Data sheetInstallation Instructions | |

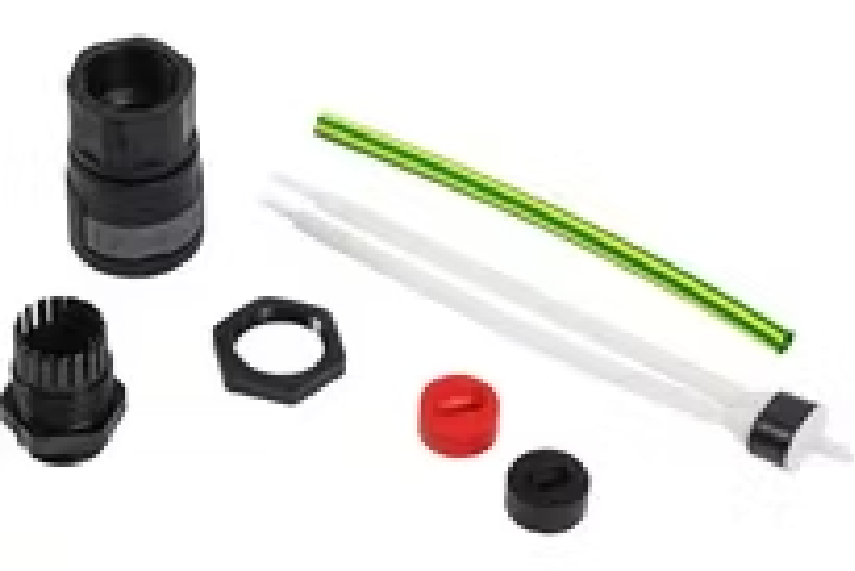

CCON25-100 (Heat-shrink connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | M25 | IP 66 -55 ... +40 °C | Data sheetInstallation Instructions | |

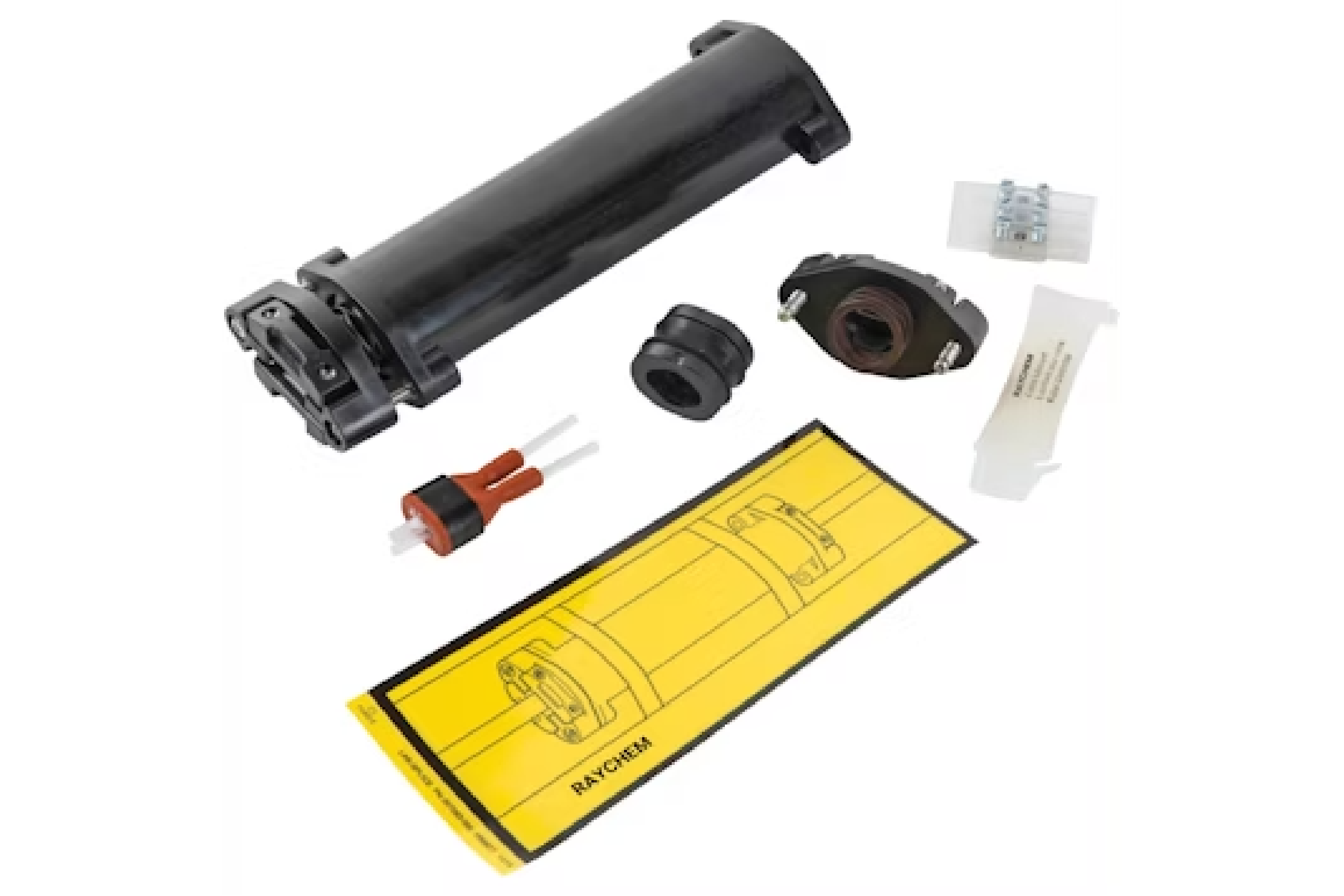

C25-100-METAL (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | M25 3/4 Zoll | IP 68 -60 ... +180 °C | Data sheetInstallation Instructions | |
C-150-E (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV | IP 66 -50 ... +215 °C | Data sheetInstallation Instructions | ||

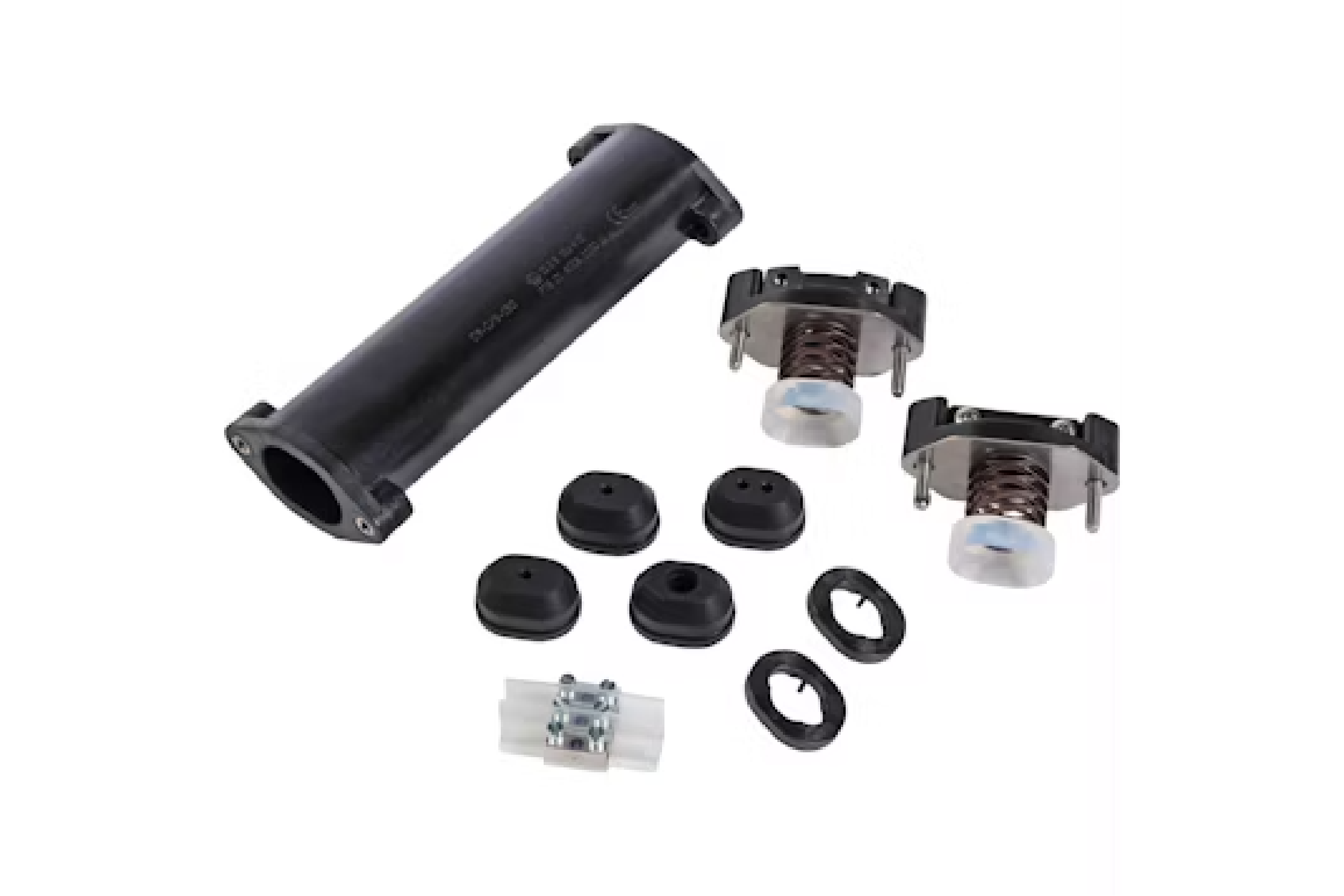

CS-150-UNI-PI (Cold applied connection) | Single conductor-PI | IP 66 -50 ... +150/180 °C | Data sheetInstallation Instructions | ||

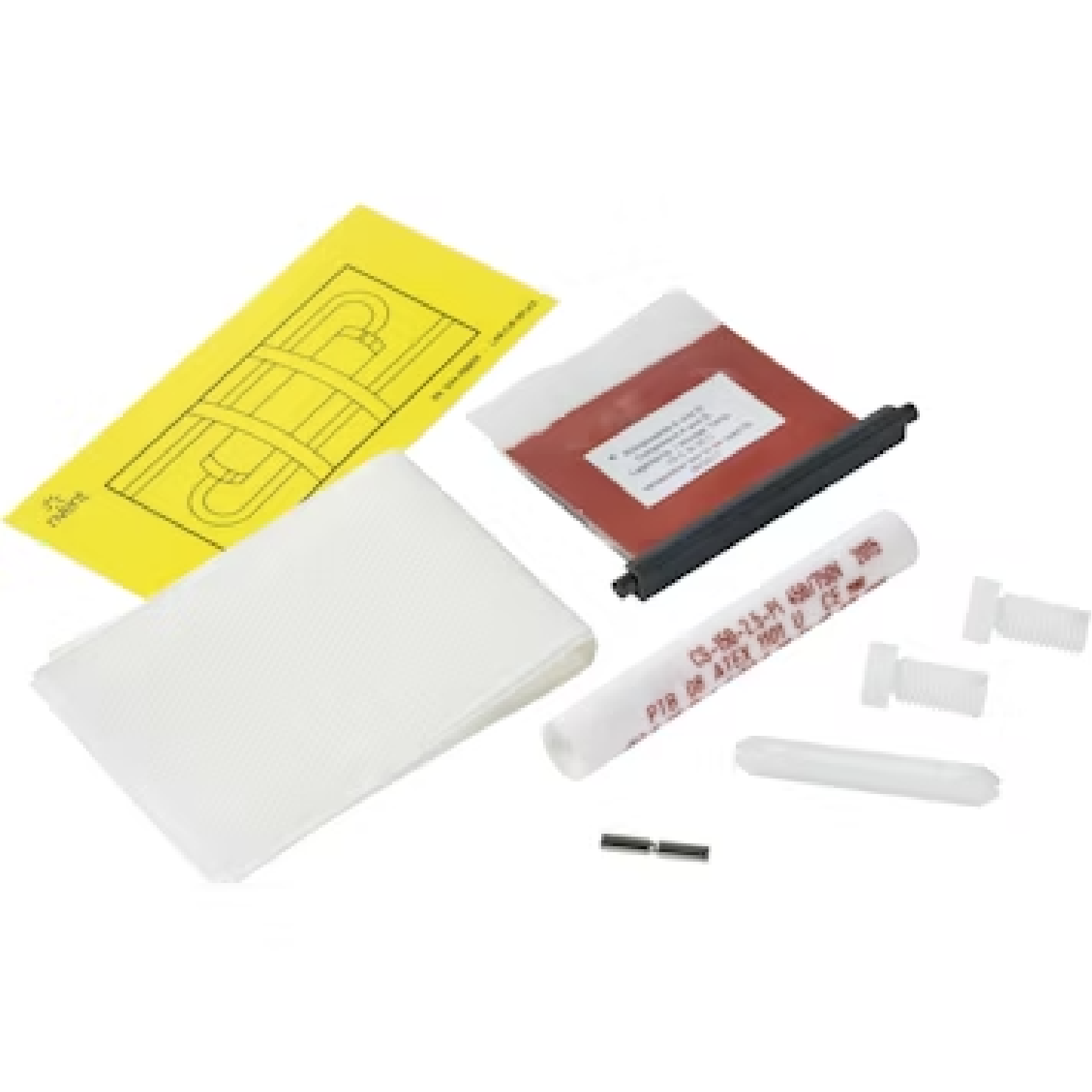

CS-150-xx-PI (Sealing technique) | Single conductor-PI | IP 65 +200 (260) °C | Data sheetInstallation Instructions | ||

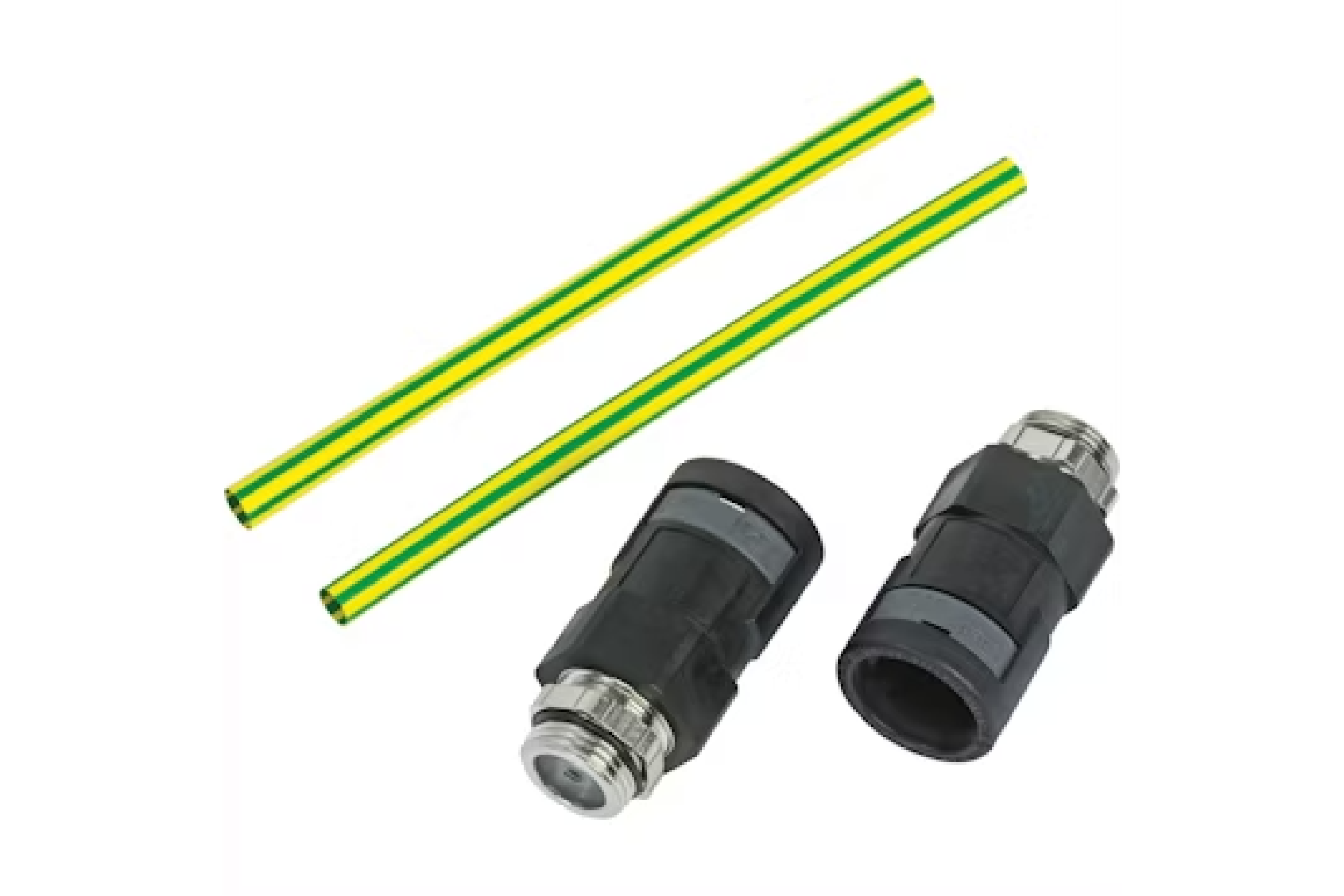

CCON20-100-PI (Cold applied connection) | Single conductor-PI | IP 66 -55 ... +40 °C | Data sheetInstallation Instructions | ||

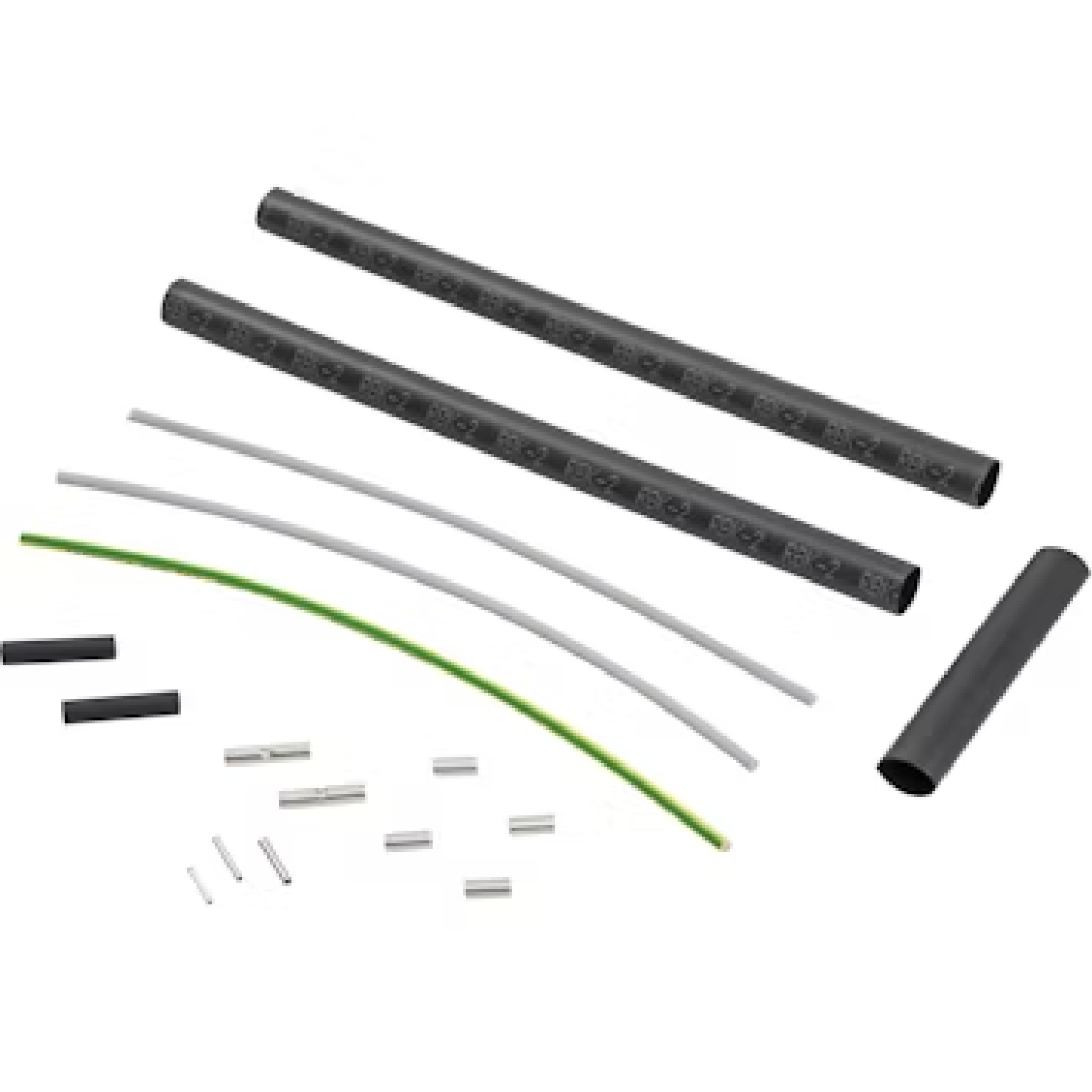

CS20-2,5-PI-NH(Cold applied connection)  | Single conductor-PI | M20 | -50 ... +205 °C | Data sheetInstallation Instructions |
| Product | for heating tapes | Clamps | Surroundings | Download Technology | Download Approval |

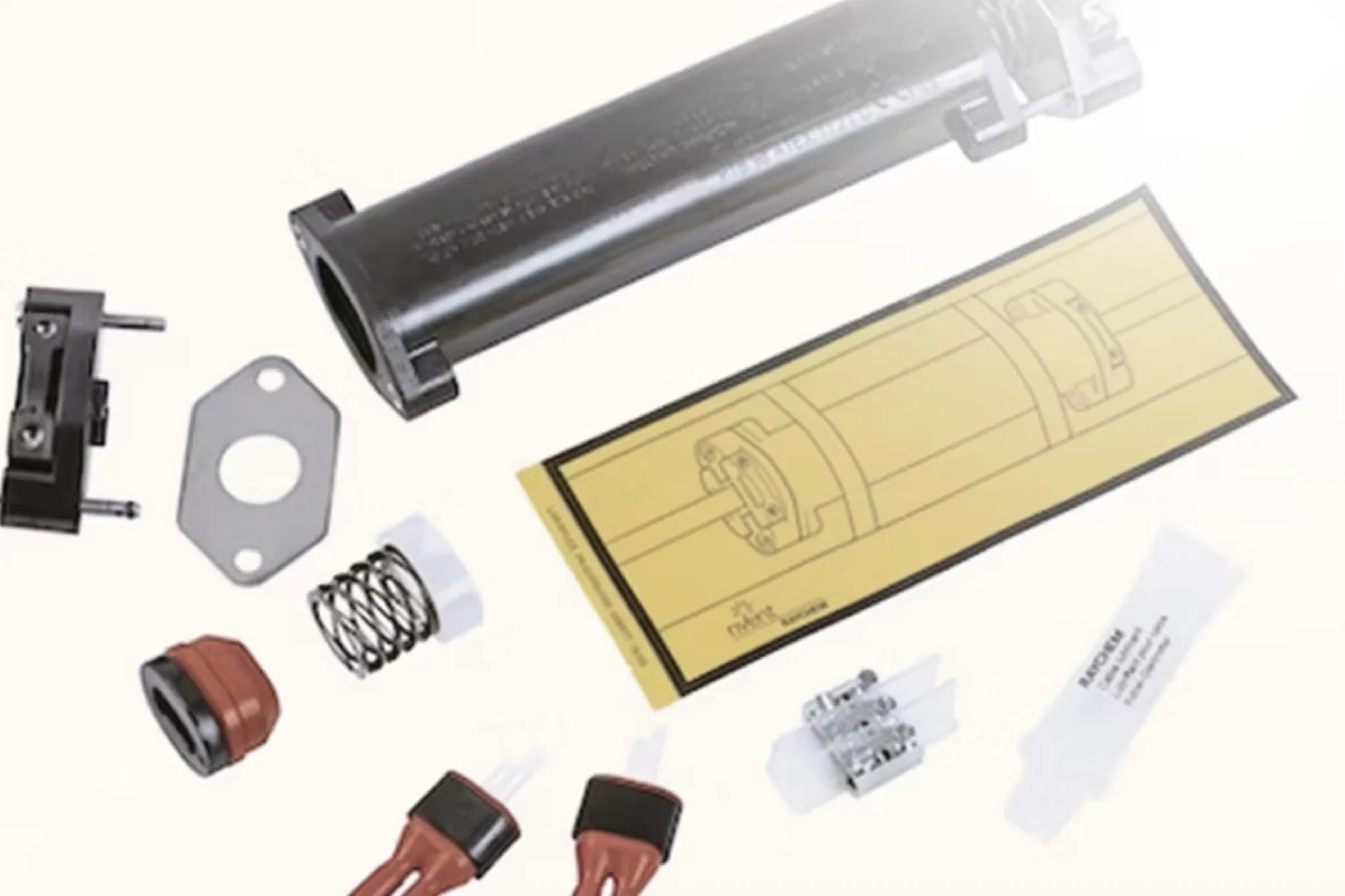

S-150 (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV | IP 66 -50 ... +215 °C | Data sheetInstallation Instructions | ||
S-19 S-21 S-69 (Cold applied connection)Note No longer in stock, see replacement types S-20 / S-40 | BTV-CR BTV-CT QTVR XTV KTV depending on type | 85 °C 135 °C 160 °C depending on type | Data sheetInstallation Instructions (S-19 / S-21)Installation Instructions (S-69) | ||

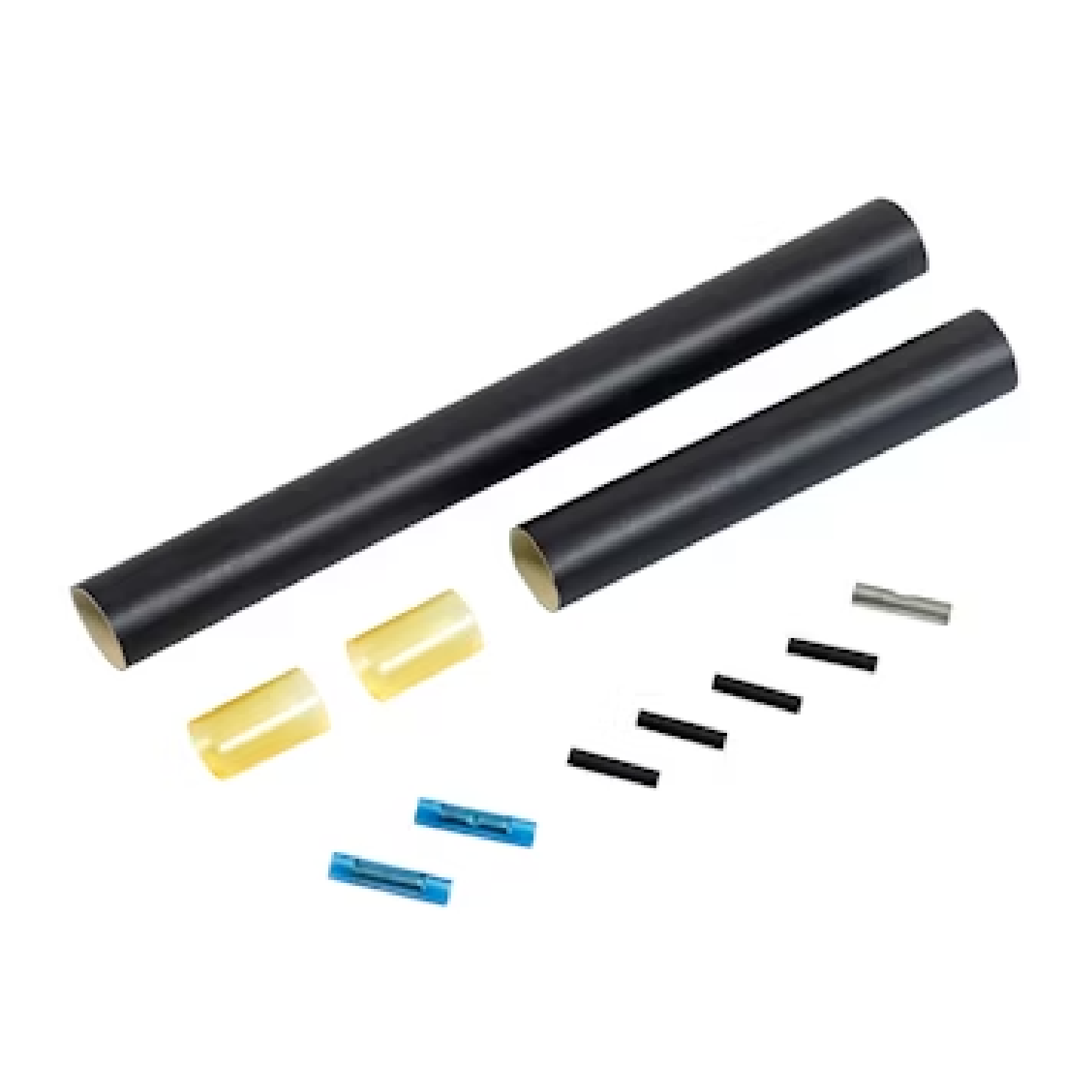

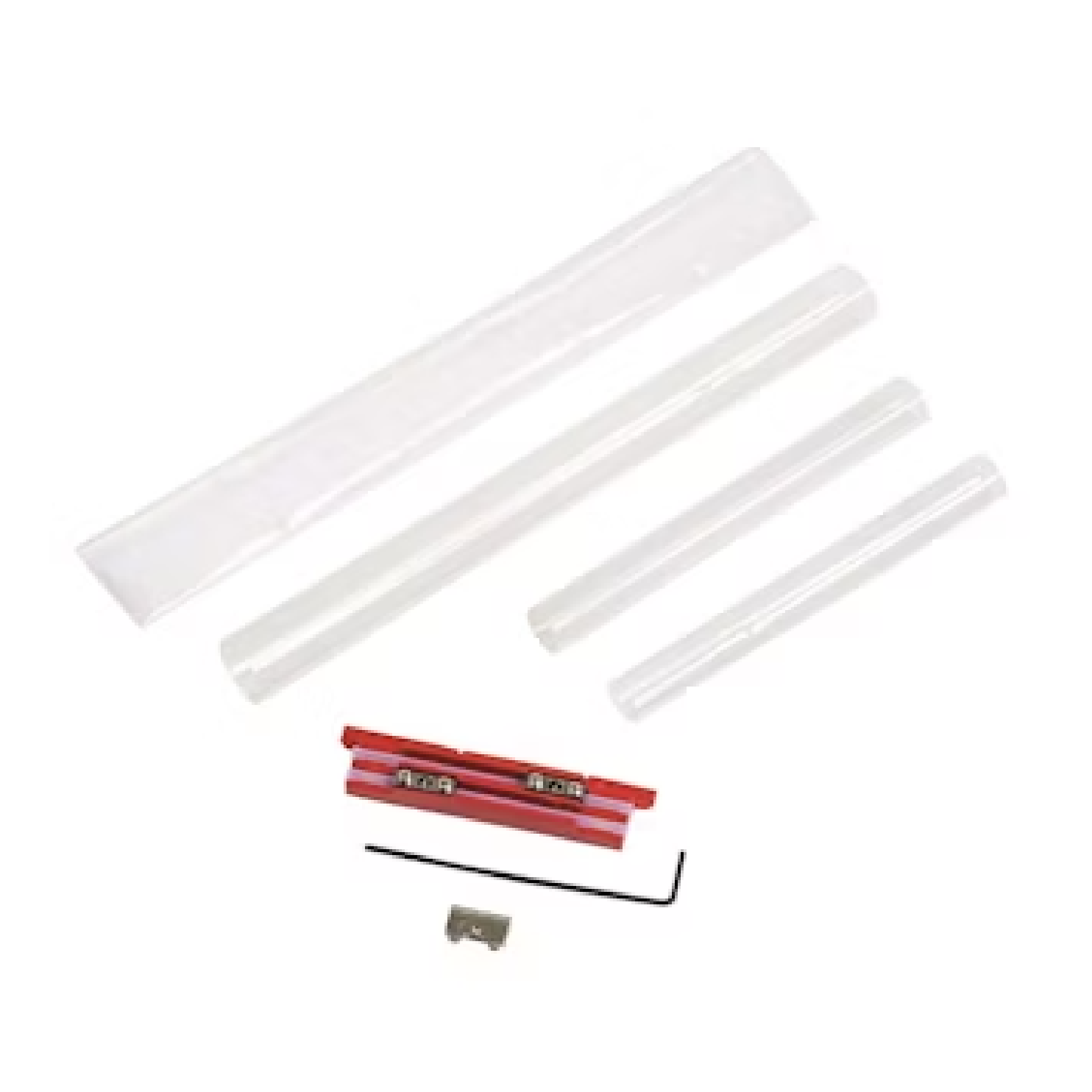

S-20 S-40 (Heat-shrink connection) | S-20 for BTV-CR/-CT QTVR S-40 for XTV HTV KTV VPL | S-20 -60 ... +110°C S-40 -60 ... +260°C | |||
T-100 (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | IP 66 -50 ... +56 °C | Data sheetInstallation Instructions |
| Product | for heating tapes | Clamps | Surroundings | Download Technology | Download Approval |

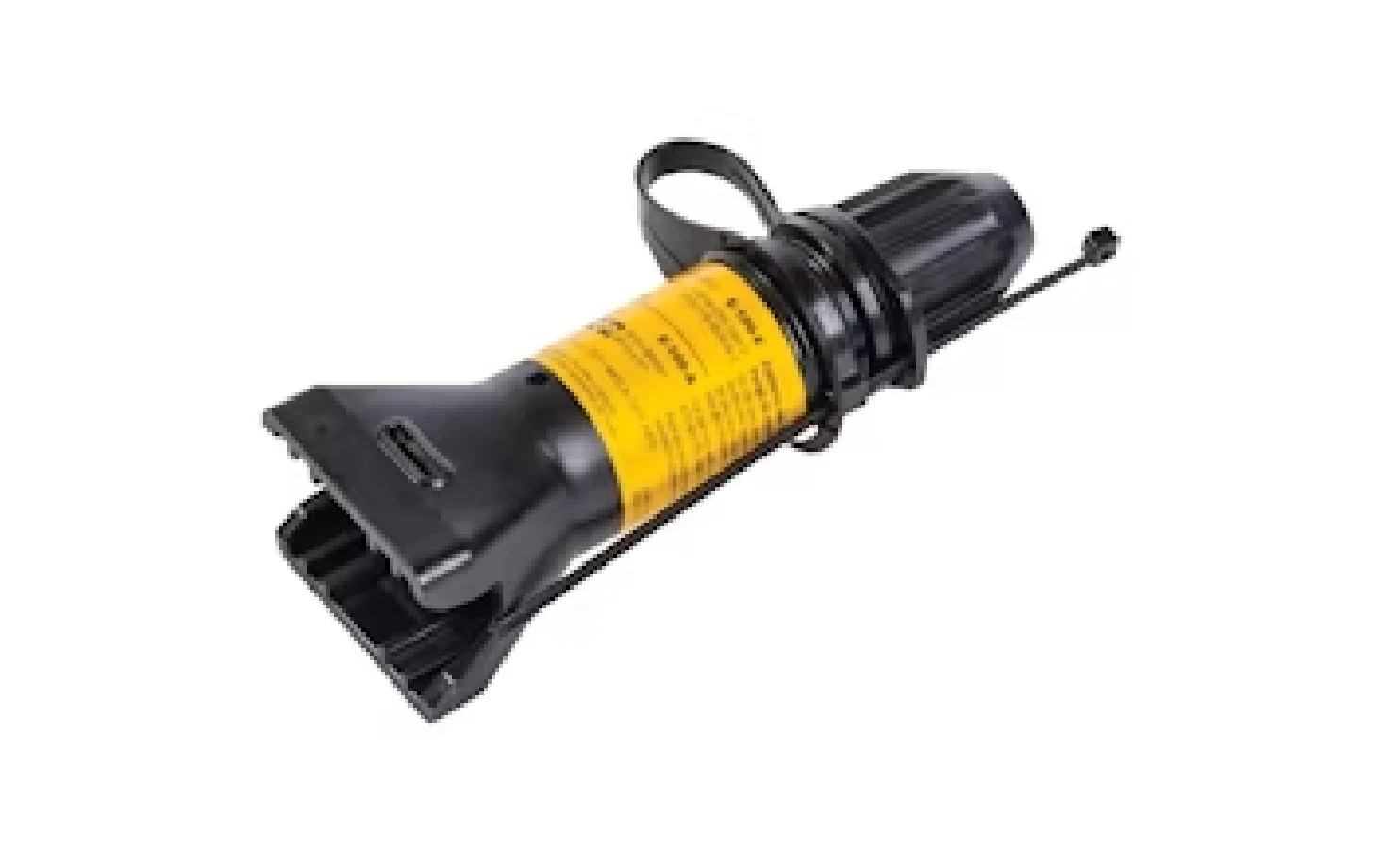

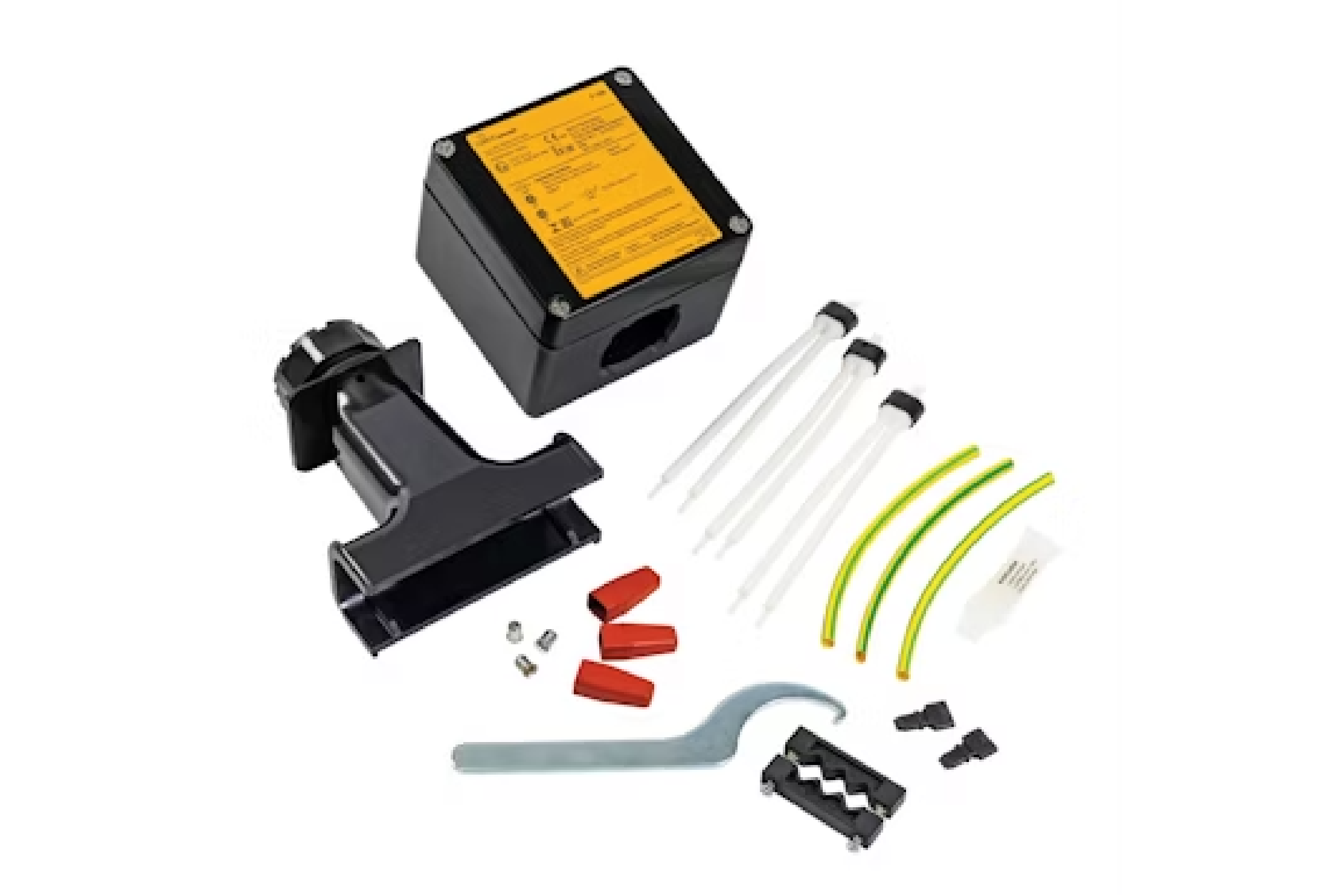

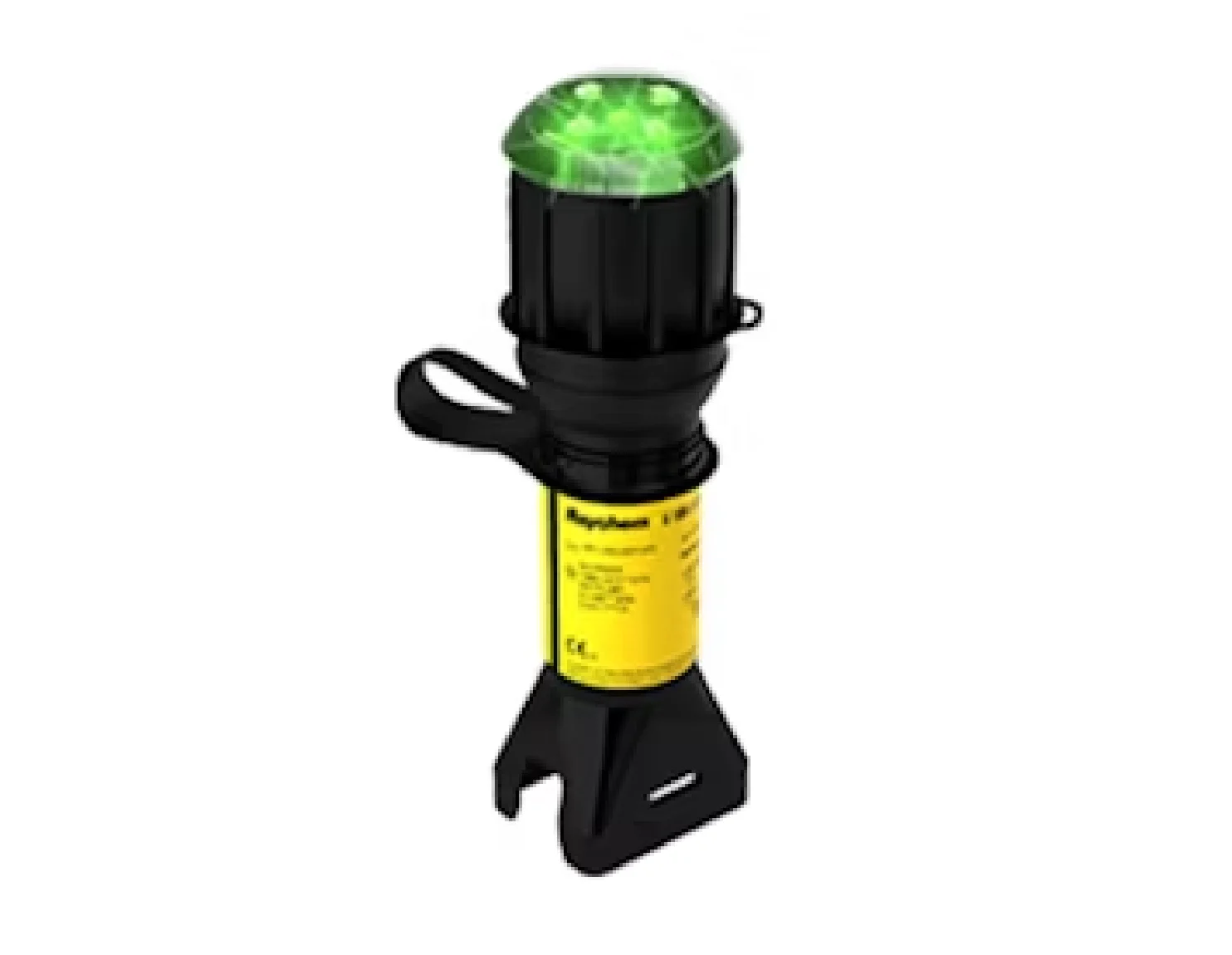

E-100-E E-100-L-E (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV VPL | IP 66 -50 ... +56 °C -40 ... +40 °C (L) | Data sheetInstallation InstructionsInstallation Instructions | ||
E-150 (Cold applied connection) | BTV-CR BTV-CT QTVR XTV KTV | IP 66 -50 ... +215 °C | Data sheetInstallation Instructions | ||
E-50 (Heat-shrink connection) | VPL | IP 66 175 °C 200 °C 260 °C | Data sheetInstallation Instructions (E-03 E-06 E-19)Installation Instructions (E-50) | ||
E-06 E-19 (Heat-shrink connection)Note No longer in stock, see replacement types E-20 / E-40 | BTV-CR BTV-CT QTVR XTV KTV | IP 66 175 °C 200 °C 260 °C | Data sheetInstallation Instructions (E-06 E-06 E-19 )Installation Instructions (E-50) | ||

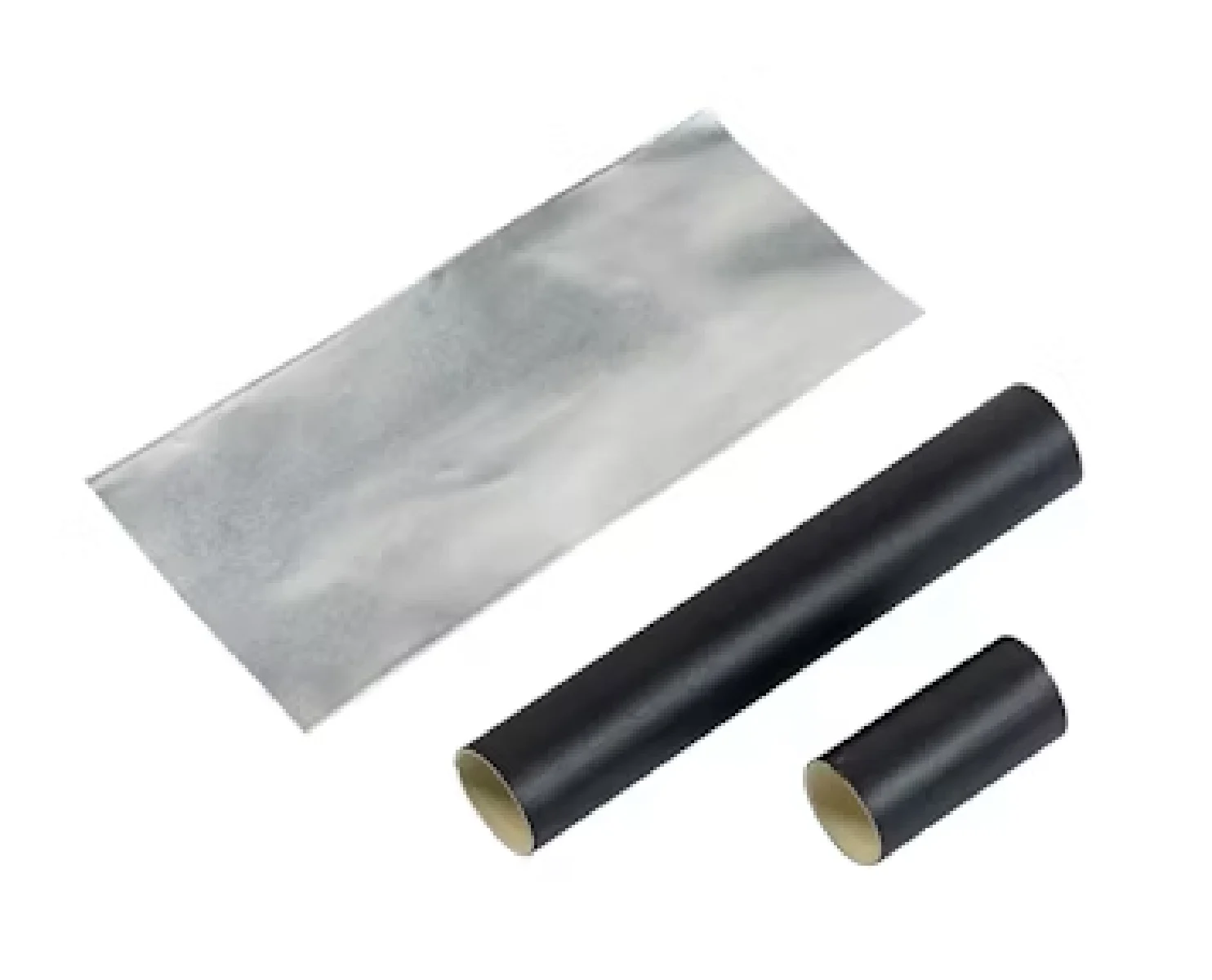

E-20 (Heat-shrink connection) | BTV-CR BTV-CT QTVR | 110 °C | Data sheetInstallation Instructions | ||

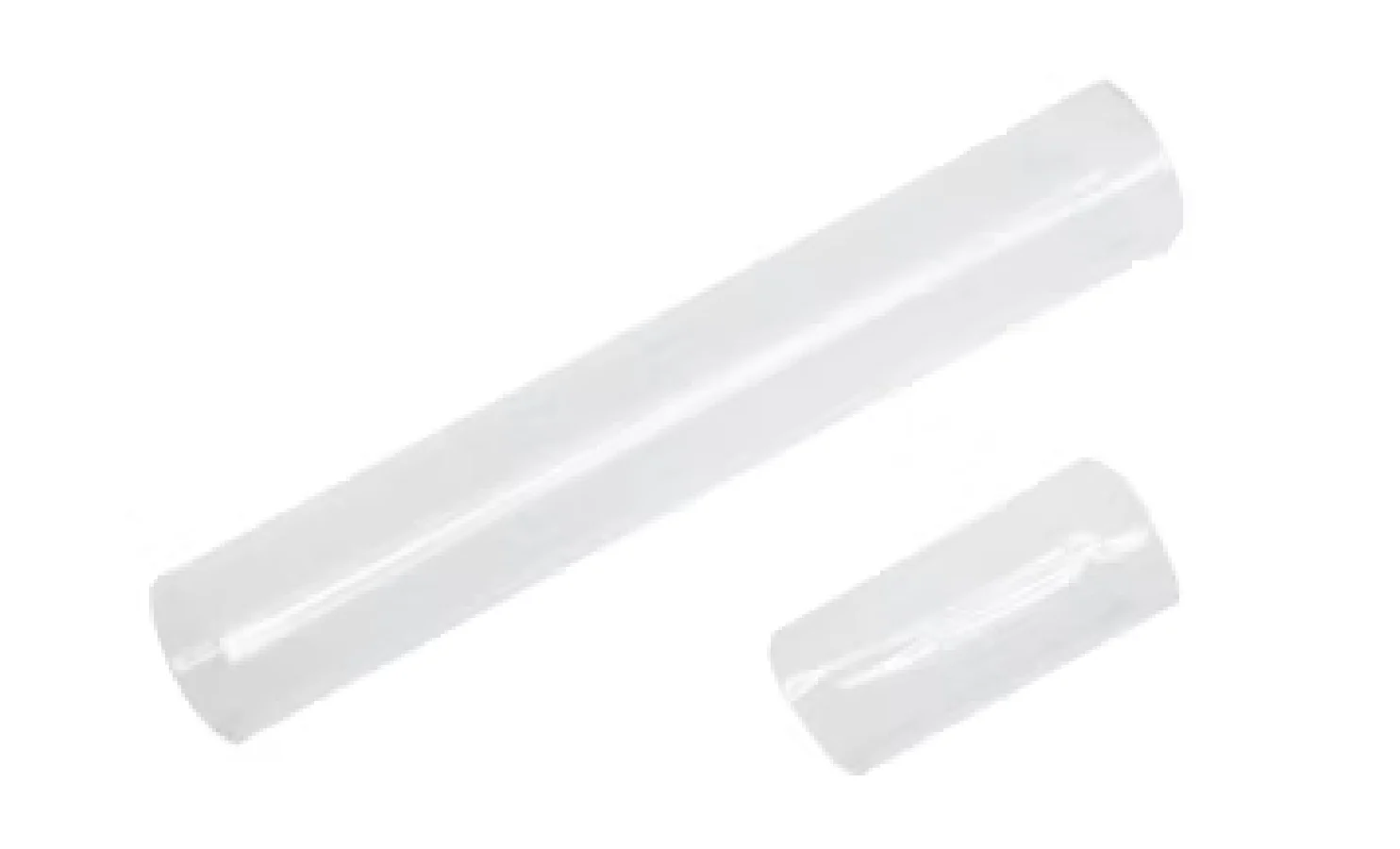

E-40 (Heat-shrink connection) | XTV HTV KTV VPL | 260 °C | Data sheetInstallation Instructions |
| Product | for heating tapes | Clamps | Surroundings | Download Technology | Download Approval |
CCON2x-C | Heizleitungen Kaltleitungen | 17 mm (M20) 23 mm M25 | -40 ... +135/150 °C -200 ... +260 °C | Data sheet | |

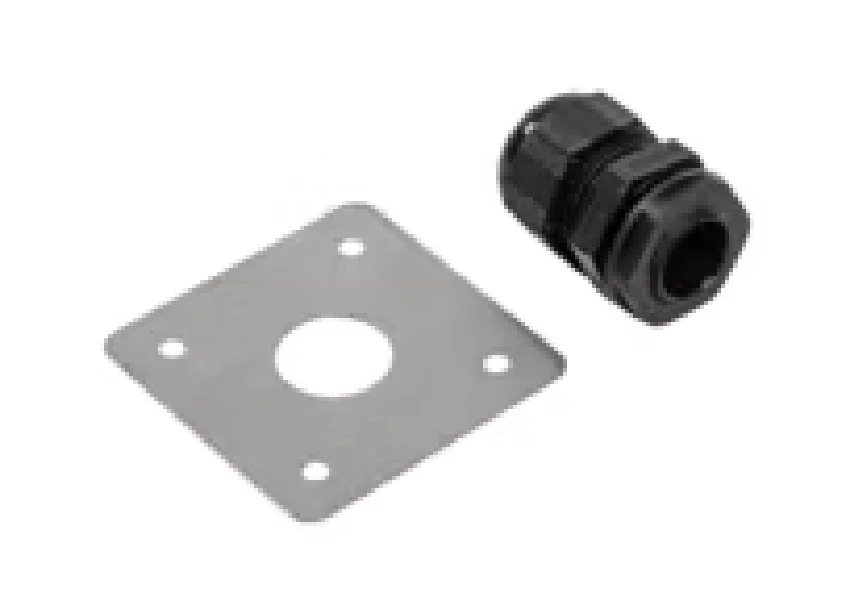

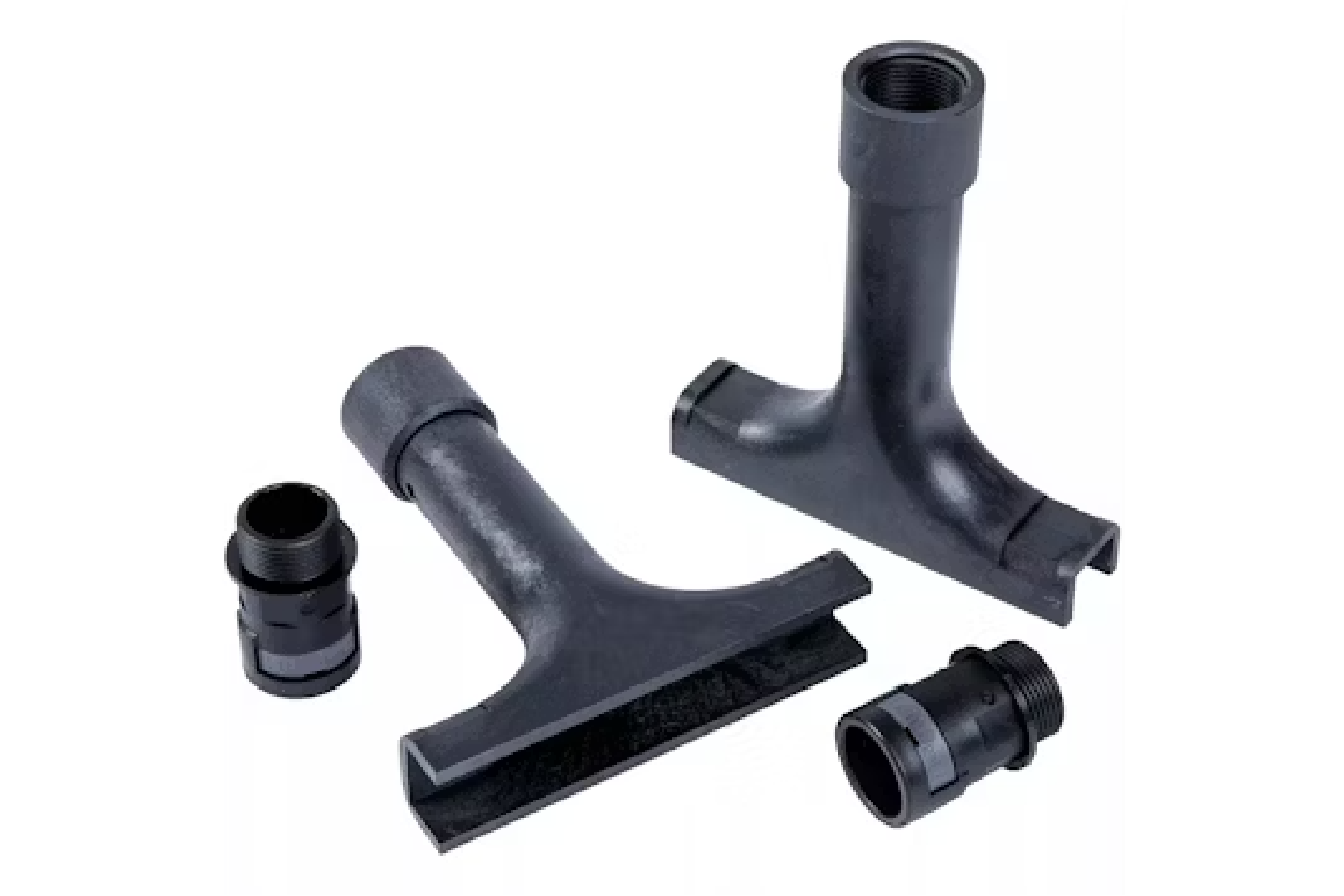

IEK-25-PIPE IEK-25-04  | Heating cables (heating tapes) Cold cables | 110 °C | Data sheetInstallation Instructions (IEK-25-PIPE)Installation Instructions (IEK-25-04) | ||

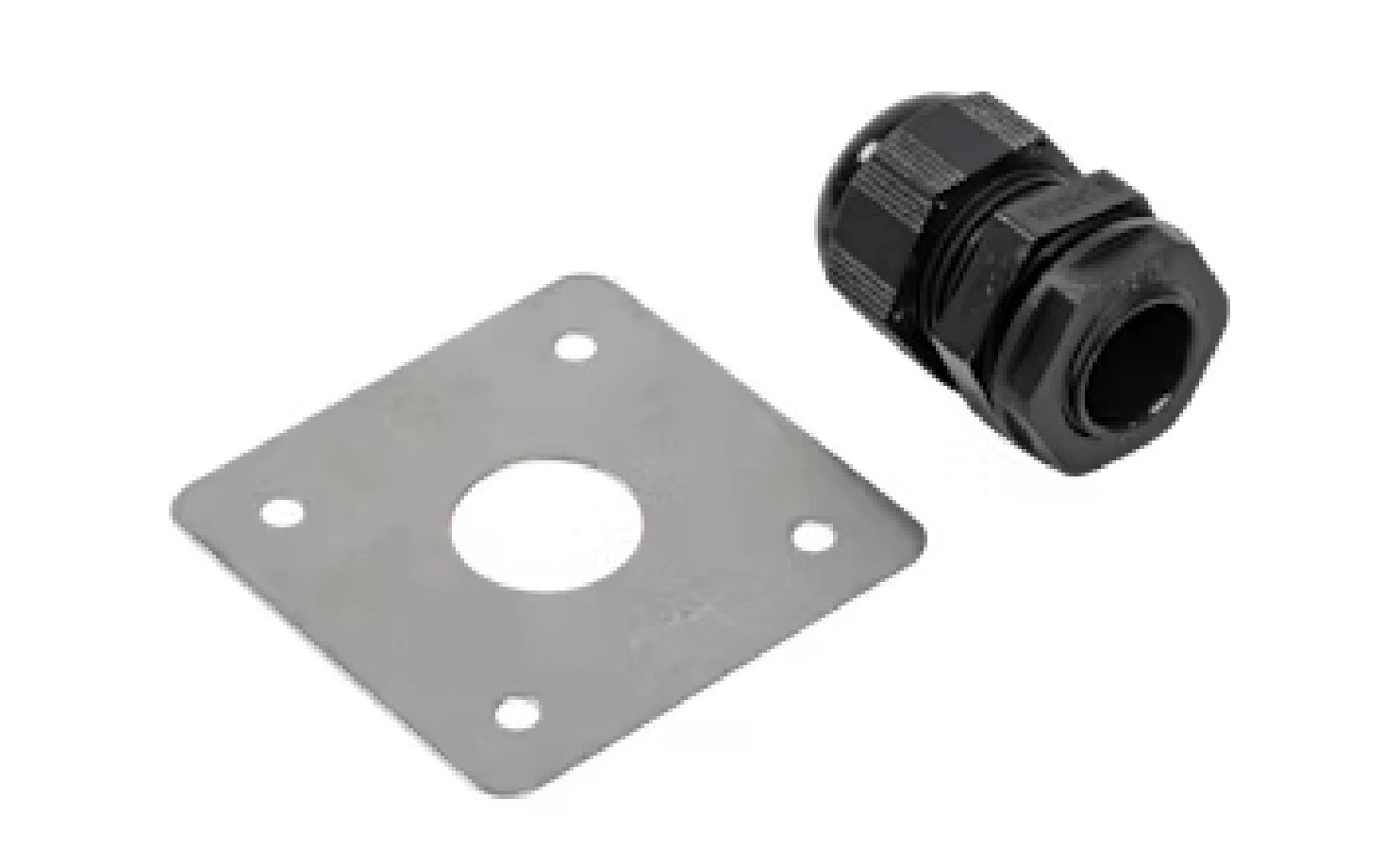

IEK-20-PI  | Heating cables (PI) Cold cables | 80 °C | Data sheetInstallation Instructions |
| Product | Description | Download Technology | Download Approval |
RS485-WIRE | RS-485 network cable | Data sheet | |
Raychem Switchgear | Raychem switchgear for power supply, control and monitoring of electrical heating circuits | Data sheet | |
Raychem accessories | General accessories Mounting bracket Identification stickers Adhesive tapes Fixing material Clamps Screw fittings Adapters Power supply units | Data sheet | |
STRIPPING-TOOL-SR-CABLE | Stripping tool for use with self-regulating heating tapes of the series - BTV - QTVR - XTV - KTV | ||

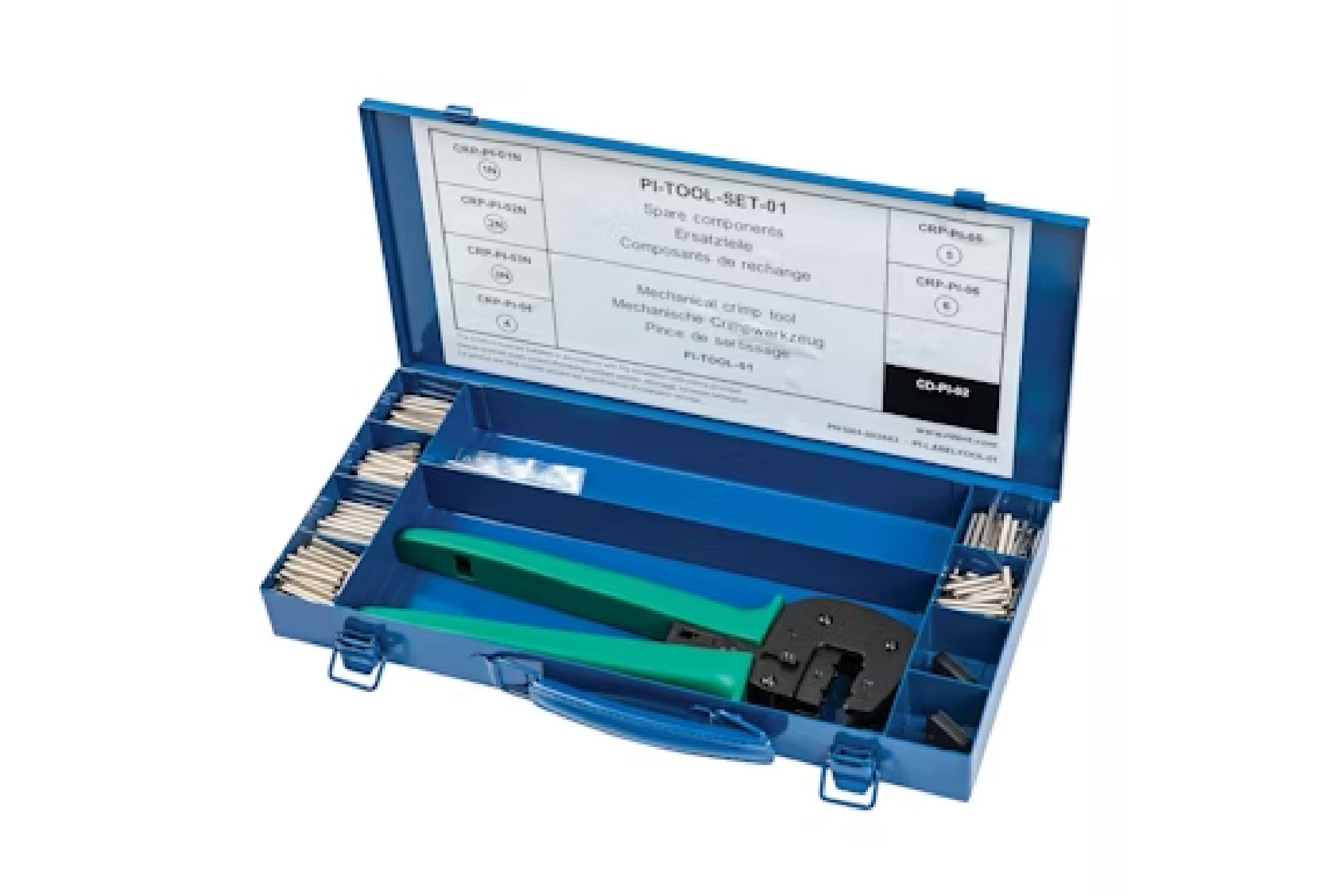

PI-TOOL-SET-XX  | Toolbox with crimping tool, crimp inserts and ferrules for single-conductor PI heating cables | Data sheet | |
DET-4000 | Fault locator | Data sheet |
Better performance with our products
High-quality accessories for trace heating
The perfect selection of individual components for electrical trace heating is essential for reliable and secure operation. Our product range includes components to configure trace heating for both large industrial plants and smaller projects, for example as pipe trace heating for the gutters of a production hall. In our range, you will find junction boxes, connection sets, end terminations, insulation entries, connectors and numerous other accessories.
Optimise the heating output in the long term
Trace heating end terminations
End terminations are vital components for reliably functioning trace heating. These components prevent moisture from penetrating into the heating cable and electrically insulate the end of the heating tape. In the Ziegler range, you will find heat-shrink and cold-connection end terminations, suitable for the intended plant or the selected cables. This plays a particularly important role when it comes to the increased requirements in hazardous areas. Our experts at ZIEGLER ENGINEERING answer all questions about the right trace heating end termination and other individual components.
Install heating tapes over long distances
Connectors for pipe trace heating
The ZIEGLER ENGINEERING range also includes connectors for heating tapes, whereby, for example, defective sections of heating tape need to be repaired and replaced. The key selection factor here is, once again, the coordination of the connector type with the selected system and the area of application. The ZIEGLER ENGINEERING range of accessories includes a large number of different connectors, including for challenging and safety-relevant applications, for example in hazardous areas. These allow reliable and permanently tight connections to be implemented without a hitch in most cases.
Would like some product advice?
Get in touch with our team of experts! Everything you get from ZIEGLER ENGINEERING is from a single source – from planning and commissioning through to maintenance of your electrical trace heating.
The right components for all cases
Connectors and other accessories
Heating tapes and heating cables are usually electrically connected using connection boxes and connection sets. The connection box forms the transition between the warm and cold parts of the trace heating system and offers space for the connections between the heating cable and the power source using a connection set. The two components also provide protection against moisture and weather influences and they electrically insulate the heating tape. The ZIEGLER ENGINEERING product range offers an extensive selection of different types of these crucial accessories for every trace heating application.
Ports, connectors and end terminations
Outstanding heating performance with accessories from ZIEGLER ENGINEERING
With over 50 years of experience, ZIEGLER ENGINEERING is the ideal partner for the planning and implementation of electrical trace heating projects. We deliver custom, one-stop solutions: a comprehensive range of high-quality accessories and components from connection boxes, connection sets and trace heating end terminations to different types of connectors and a wide variety of other products such as heating cables, heating tapes and thermostats, as well as a team of experts with the necessary expertise make us the top choice when it comes to planning and implementing your trace heating project. Benefit from our expertise in custom trace heating systems.
Frequently asked questions about components and accessories
To form a heating circuit you will need: a connection set, an end termination set, heating tape/heating cable, junction box and/or temperature controller and installation material such as glass silk tape.
Centralised controllers can be installed in the control cabinet; decentralised controllers are placed on the pipeline/container. We also distinguish between ambient thermostats (measuring the ambient temperature) and direct line sensing, which directly measures the temperature of the object to be heated. Nowadays, many controllers can transmit information to control systems and receive information from said systems.
Glass silk tape is usually used, but self-adhesive aluminium foil is also commonly used. This has a positive influence on heat transfer and increases the heat output of self-regulating heating tapes. In addition, it is primarily fixed resistance heating cables that can be mounted with straps, wires or wire mesh/wire baskets.
